| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

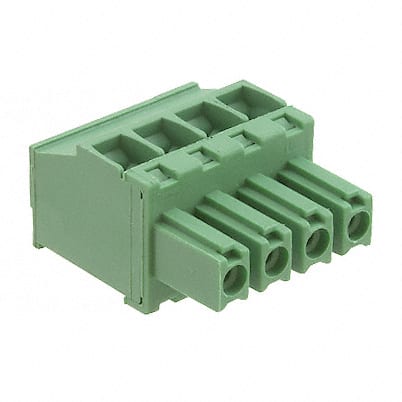

The TE Connectivity 1986374-4 is a 4-position terminal block plug designed for reliable wire-to-board connections. It features a 3.81mm pitch and a single-level configuration, making it suitable for compact wiring applications.
This plug accepts wire gauges from 0.05 to 2mm² and uses a screw rising cage clamp termination style for secure and vibration-resistant connections. The plug wire entry is at a 90° angle, facilitating right-angle wiring from the connector.
Rated for 11A and 300V, the 1986374-4 operates over a temperature range of -40°C to 110°C. The housing is green and the contacts are tin-plated. A side stacking feature allows multiple plugs to be ganged together for multi-pole connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.98 | $8.98 |
| 10+ | $6.36 | $6.36 |
| 25+ | $5.61 | $5.61 |
| 50+ | $5.14 | $5.14 |
| 100+ | $4.77 | $4.77 |
| 300+ | $4.34 | $4.34 |
| 600+ | $4.12 | $4.12 |
| 1,050+ | $3.97 | $3.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1986374-4 has 4 positions.
The pitch is 3.81mm (0.150 inches).
The current rating is 11 A.
The voltage rating is 300 V.
The mounting type is Free Hanging (In-Line).
It uses a Screw - Rising Cage Clamp termination style.
The operating temperature range is -40°C to 110°C.
