| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,744 pcs
|
14744 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

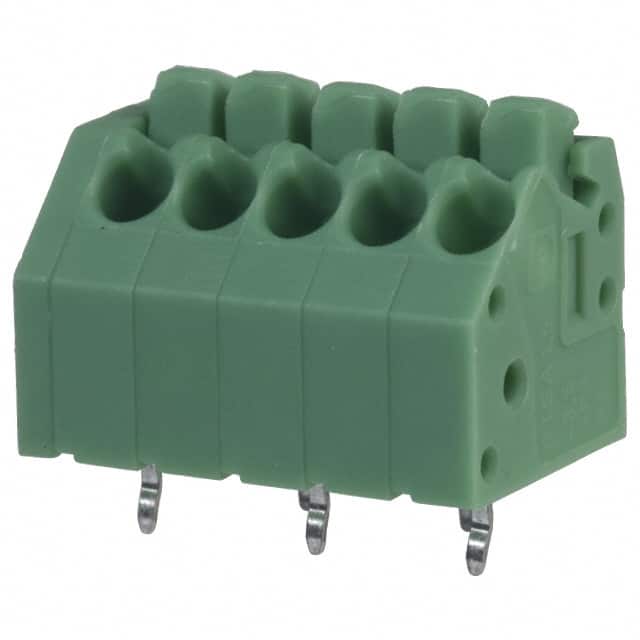

The Phoenix Contact 1985221 is a 5 position wire to board terminal block designed for reliable PCB connections. It features a 3.50mm pitch and a unique 45° (135°) angle with board mating orientation, allowing for space-saving layouts and easy wire access. The terminal block uses a screwless spring cage, tension clamp wire termination method, enabling quick and tool-free wire installation for 16-24 AWG wires.
Electrically, the 1985221 is rated for 2A current and 300V voltage, suitable for low to moderate power signal and control applications. The through hole mounting type provides robust mechanical attachment to the PCB. The green housing color is standard for terminal blocks, aiding visual identification in dense assemblies.
This component is ideal for industrial control systems, building automation, and instrumentation where secure wire connections and compact design are required. The 45° orientation facilitates wiring in tight spaces or angled cable entries.
It has 5 positions per level with 1 level.
The pitch is 3.50mm (0.138 inches).
Rated for 2A current and 300V voltage.
Accepts 16 to 24 AWG wire.
Screwless spring cage, tension clamp termination.
Through hole mounting.
45° (135°) angle with board.
