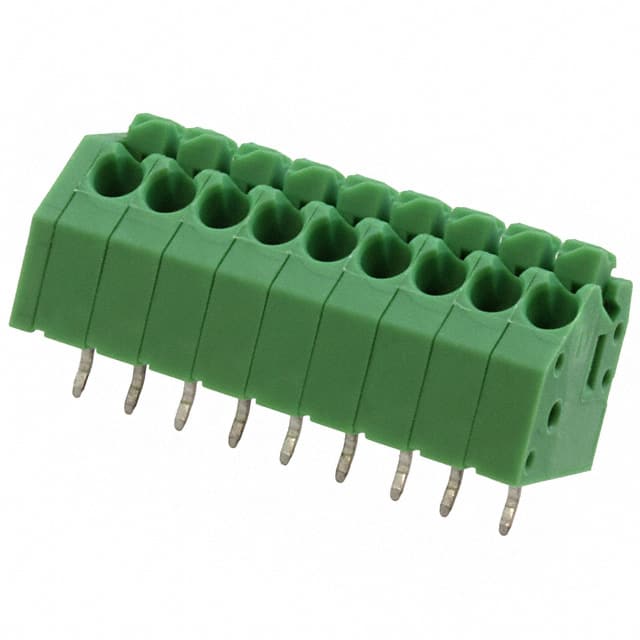

1985030 This is a 9-position single-level PCB terminal block with 3.5mm pitch from the Phoenix Contact COMBICON PTSA series. It features a screwless spring cage (tension clamp) wire termination and a 45�b0 (135�b0) mating orientation relative to the board.
Mfr Part #:

1985030

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is a 9-position single-level PCB terminal block with 3.5mm pitch from the Phoenix Contact COMBICON PTSA series. It features a screwless spring cage (tension clamp) wire termination and a 45b0 (135b0) mating orientation relative to the board.
✓ Total Stock: 1,896 pcs

1985030 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1,896 pcs
On Request
1896 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1985030 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Hole Diameter
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1985030 Description

Short technical summary and product information.

The Phoenix Contact 1985030 is a compact PCB terminal block from the COMBICON PTSA series, designed for space-critical applications in lighting and telecommunications. It offers 9 positions in a single level with a 3.5mm pitch, using a screwless spring cage (tension clamp) termination for solid and stranded wires from 16 to 24 AWG.



This through-hole component is rated for 2A at 300V and has a rated surge voltage of 2.5 kV (surge voltage category III/3). The 45b0 (135b0) angled mating orientation allows for space-saving board layouts. The green housing is made from insulating material group I.



The termination uses solder pins with dimensions of 0.4 x 0.75 mm, requiring a 1 mm PCB hole diameter. This series is particularly suitable for applications where board space is at a premium, such as lighting drivers and telecom equipment.

1985030 Quick Information

Product Type: PCB Terminal Block
Series: PTSA 1,5/...-3,5
Canonical Name: Phoenix Contact 1985030 PCB Terminal Block, 9 Position, 3.5mm Pitch, Single Level, Through Hole, 45b0 Angled
Subcategory: Spring Cage, Wire-to-Board

1985030 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1985030 Features

  • 9 positions with 3.5mm pitch spacing.
  • Screwless spring cage wire termination.
  • 45b0 angled mating orientation to board.
  • Rated for 2A current at 300V.
  • Through-hole mounting with solder pins.

1985030 Applications

  • Lighting control and LED driver boards.
  • Telecommunications infrastructure equipment.
  • Industrial sensor and actuator interfaces.
  • Compact power distribution modules.

1985030 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1985030 terminal block have?

It has 9 positions in a single level.

What is the pitch of this terminal block?

The pitch is 3.5 mm.

What is the current and voltage rating for the 1985030?

It is rated for 2 A and 300 V.

What type of wire termination does this part use?

It uses a screwless spring cage (tension clamp) termination.

What is the mounting style for this terminal block?

It is a through-hole mounting component with solder pins.

What wire gauge range is compatible with the 1985030?

It accepts 16 to 24 AWG wire.
