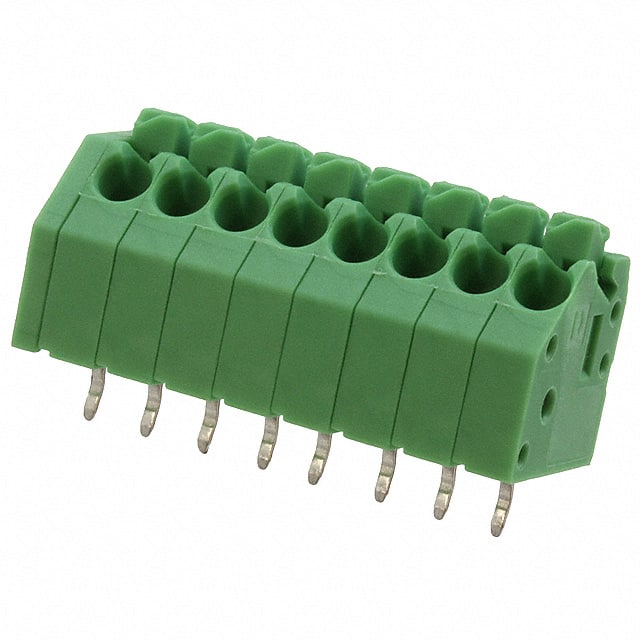

1985027 Phoenix Contact 1985027 is an 8-position PCB terminal block with 3.5mm pitch, 45° mating orientation, and screwless spring cage termination. Rated 2A, 300V, through hole mounting.
Mfr Part #:

1985027

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1985027 is an 8-position PCB terminal block with 3.5mm pitch, 45° mating orientation, and screwless spring cage termination. Rated 2A, 300V, through hole mounting.
✓ Total Stock: 13 pcs

1985027 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1985027 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1985027 Description

Short technical summary and product information.

The Phoenix Contact 1985027 is a wire-to-board PCB terminal block from the COMBICON PTSA series. It features 8 positions with a 3.5mm pitch and a 45° (135°) angled mating orientation relative to the board. The termination uses a screwless spring cage (tension clamp) mechanism, allowing quick and reliable wire connection without tools.



Electrical ratings include a current rating of 2A and a voltage rating of 300V. The terminal block accepts wire gauges from 16 to 24 AWG. The housing is green and designed for through hole mounting with a lead spacing of 3.50mm.



The PTSA series is suited for space-constrained applications such as lighting and telecommunications. The angled design facilitates wiring in tight enclosures. The spring cage termination provides vibration-resistant connections.

1985027 Quick Information

Product Type: PCB Terminal Block
Series: PTSA 1,5
Canonical Name: Phoenix Contact PTSA 1,5/8-3,5 PCB Terminal Block, 8 Position, 3.5mm Pitch, Screwless Spring Cage
Subcategory: Wire to Board

1985027 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

1985027 Features

  • 8 positions with 3.5mm pitch spacing.
  • Screwless spring cage wire termination.
  • 45° angled mating orientation to board.
  • Rated 2A current and 300V voltage.
  • Accepts 16-24 AWG wire gauge.

1985027 Applications

  • Space-constrained PCB wiring applications.
  • Lighting engineering and luminaire connections.
  • Telecommunications equipment and systems.
  • Industrial control panel wiring.

1985027 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1985027 terminal block have?

The terminal block has 8 positions.

What is the pitch of the 1985027?

The pitch is 3.50mm.

What is the current and voltage rating of the 1985027?

The current rating is 2A and the voltage rating is 300V.

What type of wire termination does the 1985027 use?

It uses a screwless spring cage (tension clamp) termination.

What is the mounting type for the 1985027?

Through hole mounting.

What wire gauge is compatible with the 1985027?

It accepts 16 to 24 AWG wire.

What is the color of the 1985027 housing?

The housing is green.
