| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Hole Diameter | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

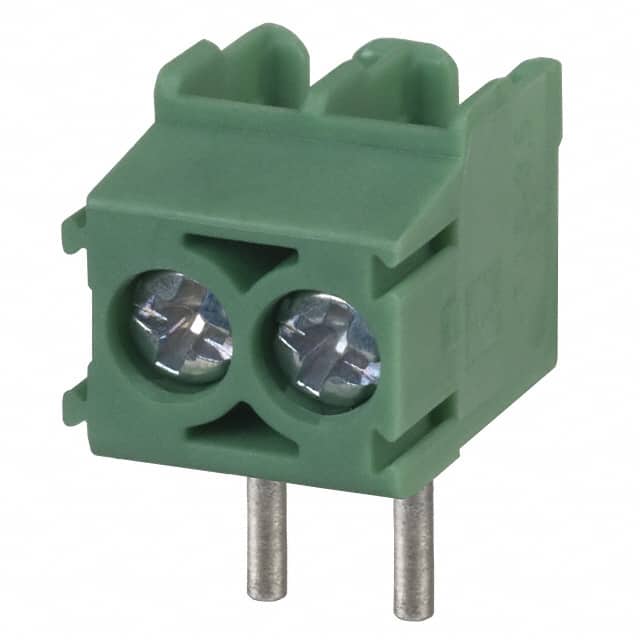

The Phoenix Contact 1984769 is a PT 1,5/2-3,5-H PCB screw terminal block from the COMBICON PT series. It features 2 positions with a 3.5mm pitch and a green insulating body. The terminal block uses a proven screw connection for reliable wire termination and supports wire gauges from 16 to 26 AWG (0.2 to 1.5 mm² solid or stranded).
Rated for 10A and 300V, this component is suitable for a wide range of industrial and commercial PCB applications. The through hole mounting style and vertical with board mating orientation simplify PCB layout and assembly. Side interlocking allows multiple units to be ganged together for higher pole counts.
Electrical ratings per IEC/DIN VDE include a rated surge voltage of 2.5 kV and nominal current of 17.5A at 1.5 mm² cross section. The insulating material group is I, ensuring robust electrical isolation. The compact 3.5mm pitch saves board space while maintaining adequate clearance.
The pitch is 3.5 mm.
It has 2 positions (1 level, 2 positions per level).
Rated 10 A and 300 V. IEC ratings: 160 V (III/3), 200 V (III/2), 400 V (II/2). Nominal current 17.5 A at 1.5 mm².
Accepts 16-26 AWG (0.2-1.5 mm² solid or stranded).
Through hole mounting with screw termination.
