| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,785 pcs
|
25785 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Current | |
| Features | |
| Halogen Free | |
| Hole Diameter | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Nominal Current | |
| Number of Levels | |
| Pin Diameter | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Rated Voltage (Surge Category II/2) | |
| Rated Voltage (Surge Category III/2) | |
| Rated Voltage (Surge Category III/3) | |
| SVHC Present | |
| Solid Conductor Size | |
| Stranded Conductor Size | |
| Stranded with Ferrule | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

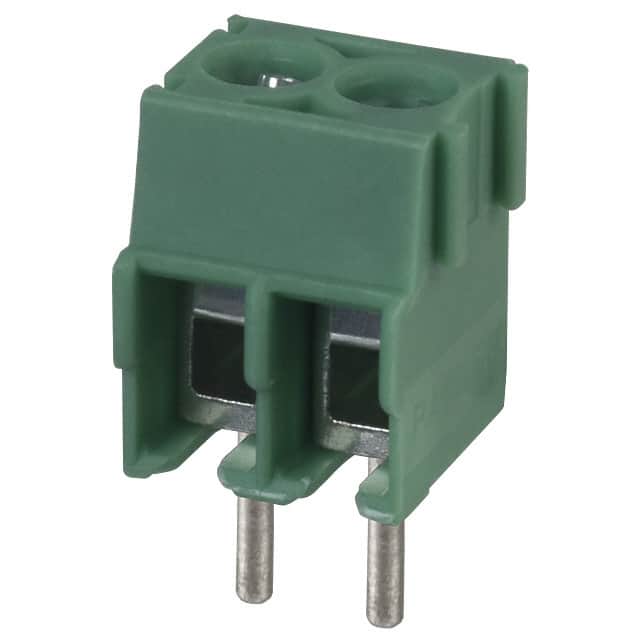

The Phoenix Contact 1984617 is a 2-position PCB screw terminal block from the PT 1,5 series with a 3.5mm pitch. It features a proven screw connection with flexible conductor protection and a compact design. The terminal block accepts wire sizes 16-26 AWG (0.2-1.5 mm² solid or stranded) and is rated for 10A current and 300V voltage. The through-hole mounting with horizontal mating orientation makes it suitable for space-constrained PCB layouts. The green housing includes side interlocking for multi-position assembly.
3.5 mm (0.138 inches).
2 positions.
10 A (nominal 17.5 A per datasheet).
300 V (surge category dependent: 160 V for III/3, 200 V for III/2, 400 V for II/2).
Through hole.
16-26 AWG (0.2-1.5 mm² solid or stranded).
Screw termination.
