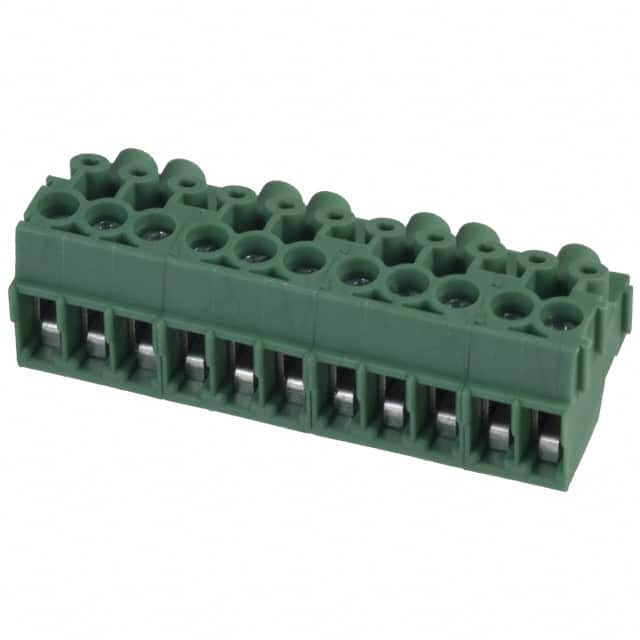

1984109 Phoenix Contact 1984109 is an 11-position terminal block plug with 3.5mm pitch, screw rising cage clamp termination, and free hanging mount. Rated 300V and 10A.
Mfr Part #:

1984109

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1984109 is an 11-position terminal block plug with 3.5mm pitch, screw rising cage clamp termination, and free hanging mount. Rated 300V and 10A.
✓ Total Stock: 77 pcs

1984109 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
77 pcs
On Request
77 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1984109 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Hole Diameter
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pin Diameter
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1984109 Description

Short technical summary and product information.

The Phoenix Contact 1984109 is a 11-position terminal block plug part of the PT 1,5 series. It features a 3.5mm pitch and screw rising cage clamp termination for secure wire connections. The plug is designed for free hanging (in-line) mounting and accepts solid or stranded conductors from 0.2 to 1.5 mm² (26-16 AWG).



This plug is intended for use with unshrouded headers and offers both 90° and 180° wire entry directions for flexible routing. The housing is green, with tin-plated contacts. Electrically, it is rated for 300V and 10A (with a maximum load current of 17.5A per the datasheet). Rated surge voltage is 2.5kV, and the insulating material group is I per IEC/DIN VDE.



The compact 3.5mm pitch allows for high-density wiring in control cabinets and industrial equipment. The PT 1,5 series provides reliable screw connection with generous clamping space for easy installation.

1984109 Quick Information

Product Type: Plug for Unshrouded Header
Series: PT 1,5
Canonical Name: Phoenix Contact 1984109 - 11 Position 3.5mm Terminal Block Plug, Screw Connection, Free Hanging
Subcategory: Headers, Plugs and Sockets

1984109 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: Non-Compliant

1984109 Features

  • 11 positions with 3.5mm pitch.
  • Screw rising cage clamp termination.
  • Free hanging (in-line) mounting style.
  • Rated 300V and 10A continuous.
  • Accepts 26 to 16 AWG wire.

1984109 Applications

  • Designed for unshrouded header connections.
  • Provides reliable wire connections in tight spaces.
  • Ideal for high-density PCB wiring applications.

1984109 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1984109 have?

11 positions.

What is the pitch of this terminal block plug?

3.5mm.

What is the current rating of the 1984109?

The typical current rating is 10A, with a maximum load current of 17.5A per the datasheet.

What is the voltage rating?

300V.

What is the mounting type?

Free hanging (in-line).

What wire gauge does it accept?

26-16 AWG (0.2-1.5 mm²).

What termination style does it use?

Screw - rising cage clamp.
