| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Hole Diameter | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Nominal Current per Conductor | |
| Number of Levels | |
| Number of Positions | |
| Pin Dimensions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Rated Voltage (IEC 60664) | |
| Standard Package Qty | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge (AWG) | |
| Wire Gauge or Range |

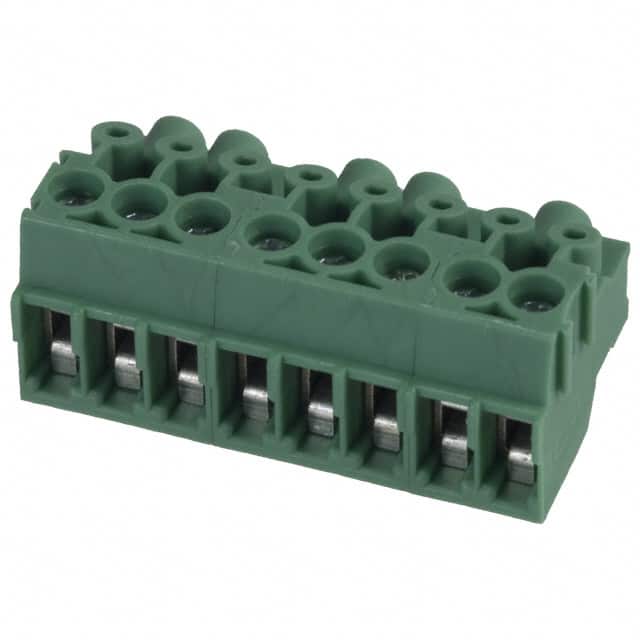

The Phoenix Contact 1984073 is an 8-position plug from the COMBICON PT series designed for use with unshrouded headers. It features a 3.5mm pitch and uses a proven screw-rising cage clamp termination method for reliable wire connection. The plug accepts wire sizes from 0.2 to 1.5 mm² (26-16 AWG) and can be wired with either 90° or 180° entry.
This plug is rated for 10 A current and 300 V voltage, with a rated surge voltage of 2.5 kV suitable for various IEC 60664-1 categories. The green insulating housing is made from material group I, offering robust electrical isolation.
The free hanging (in-line) mounting style provides flexibility in wiring harness applications. The contact mating finish is tin, ensuring reliable conductivity. Each package contains 100 pieces.
This plug has 8 positions.
The pitch is 3.5mm.
The plug is rated for 10 A and 300 V.
Screw - Rising Cage Clamp.
Free Hanging (In-Line).
Wire sizes 0.2-1.5 mm² (26-16 AWG).
