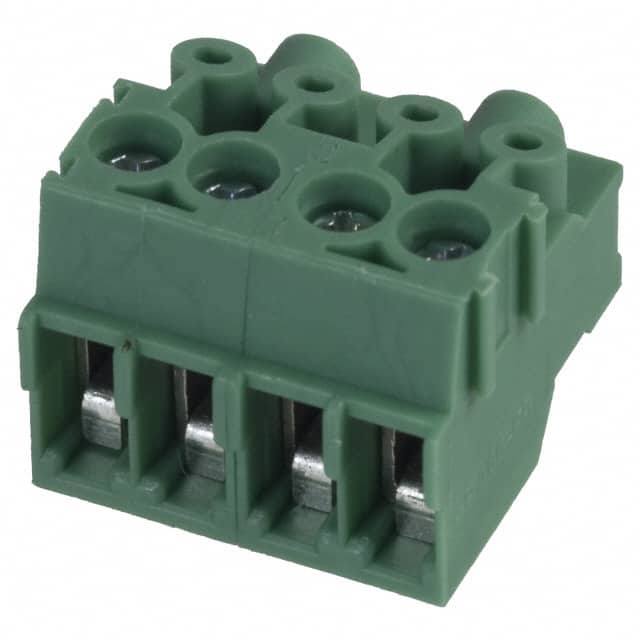

1984031 4-position, 3.5mm pitch terminal block plug by Phoenix Contact. Features screw rising cage clamp termination, free hanging mounting, and 300V/10A rating.
Mfr Part #:

1984031

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
4-position, 3.5mm pitch terminal block plug by Phoenix Contact. Features screw rising cage clamp termination, free hanging mounting, and 300V/10A rating.
✓ Total Stock: 130 pcs

1984031 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
130 pcs
On Request
130 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1984031 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Current
Hole Diameter
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pin Diameter
Pitch
Plug Wire Entry
Positions Per Level
Rated Current
Rated Voltage
Storage Temperature
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1984031 Description

Short technical summary and product information.

This terminal block plug is part of the Phoenix Contact PT 1.5 series, featuring a compact design with 3.5mm pitch. It uses a screw connection with rising cage clamp for secure wire termination. Rated for 300V and 10A, it accepts wire sizes from 0.2 to 1.5 mm². The plug is designed for free hanging (in-line) mounting and can be used with PST 1,0-3,5 pin strips. It offers plug wire entry at 90° and 180° for flexible routing. The housing is green, and contacts are tin-plated. Standard packaging is 250 pieces per box.

1984031 Quick Information

Product Type: Plug for Unshrouded Header
Series: PT 1,5
Canonical Name: Phoenix Contact PT 1,5/4-3,5-H 4-Position 3.5mm Pitch Plug for Unshrouded Header
Subcategory: Screw - Rising Cage Clamp

1984031 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1984031 Features

  • 4-position, 3.5mm pitch terminal block plug.
  • Screw rising cage clamp termination.
  • Rated for 300V and 10A.
  • Free hanging (in-line) mounting.
  • Accepts wire sizes 0.2 to 1.5 mm².

1984031 Applications

  • Ideal for industrial control panel wiring.
  • Used in compact PCB-to-wire connections.
  • Suitable for automation and sensor interfaces.

1984031 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

4 positions.

What is the pitch of this plug?

3.5 mm.

What is the rated current?

10 A.

What is the rated voltage?

300 V.

What is the mounting type?

Free hanging (in-line).

What wire sizes are accepted?

0.2 to 1.5 mm².

What type of termination does it use?

Screw - rising cage clamp.
