| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Plating - Contact Area | |
| Contact Termination | |
| Contact Type | |
| Flammability Rating | |
| Housing Color | |
| Housing Material | |
| Latch Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Stacking Direction | |
| Termination Style | |
| Wire Gauge Max |

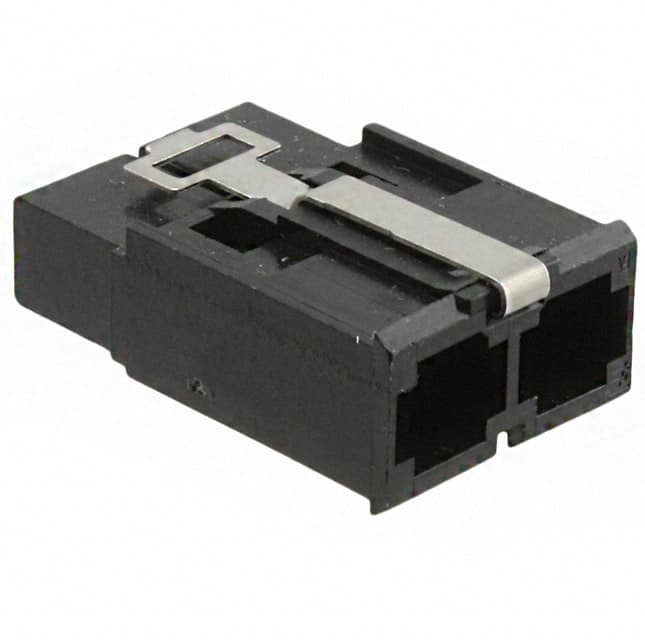

This is a TE Connectivity ELCON Mini 2-position cable connector housing (plug) designed for blade type power connectors. It accepts female blade socket contacts (sold separately) and is suitable for wire sizes up to 4 mm².
Key specifications include a 7.80mm pitch, single row, free hanging (in-line) mounting, and crimp termination. The housing is made of glass-filled polyamide (PA) with a UL94 V-0 flammability rating. The latch is stainless steel, and contacts are gold over nickel plated.
This housing is part of the ELCON Mini series, offering side-to-side stacking capability. It is RoHS3 compliant and REACH unaffected (unverified). The black color and robust construction make it suitable for power distribution applications.
2 positions.
7.80mm.
Free hanging (in-line).
Glass-filled polyamide (PA) with UL94 V-0 rating.
4 mm².
Crimp.
RoHS3 Compliant (unverified).
