| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Durability | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Retention Force | |
| Termination | |
| Voltage Rating |

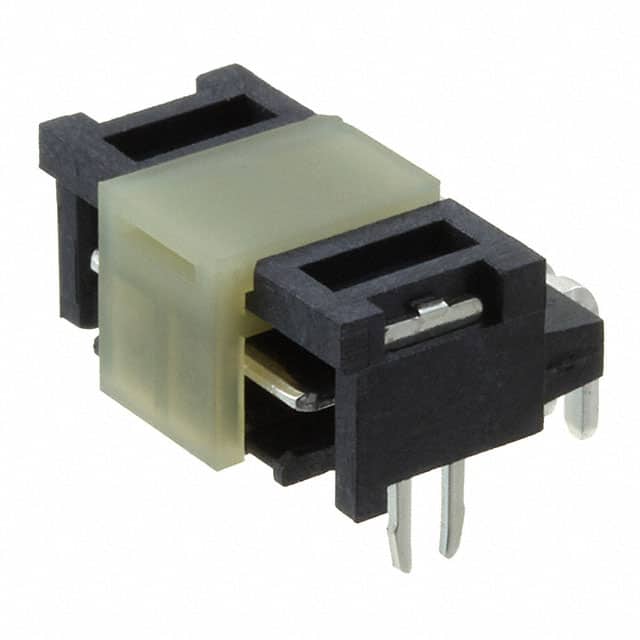

The TE Connectivity 1982295-2 is a 2-position power header from the ELCON Mini series, designed for high current density in compact spaces. It features male blade contacts with gold flash finish and a black LCP glass filled housing rated UL 94V-0.
This header supports up to 40A per contact and 400V AC or DC, with a contact resistance of 0.3 milliohms max. The operating temperature range is -40°C to 130°C. Mechanical features include board lock retention and a metal latch supporting pull forces up to 100N, with durability of 50 mating cycles.
The right angle through hole mounting and 7.80mm pitch make it suitable for power distribution in servers, data centers, telecom equipment, and industrial electronics.
2 positions, 1 row, all positions loaded (2 power contacts).
7.80mm (0.307 inches).
Up to 40A per contact (series rating).
400V AC or DC (series rating).
Through hole, right angle, with solder termination.
