| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| USB Standard | |
| Voltage |

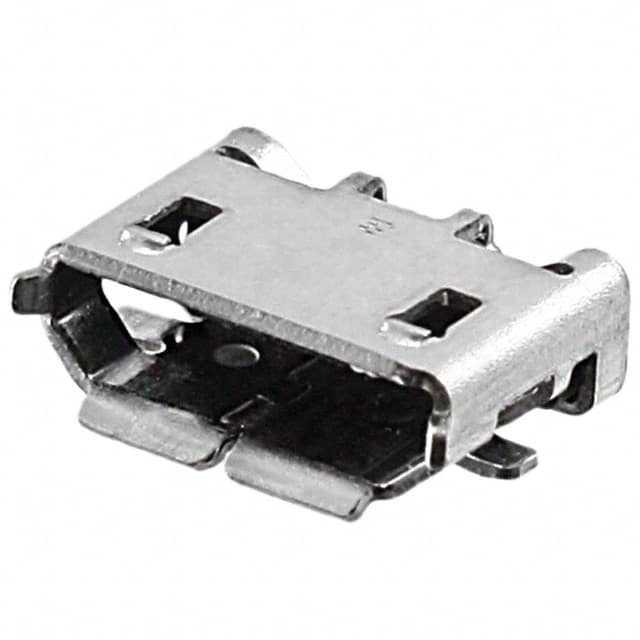

The TE Connectivity 1981568-1 is a USB 2.0 Micro B receptacle connector designed for surface mount right angle mounting. It features 5 contacts, a single port, and an unshielded horizontal body. Electrical ratings include a voltage of 30V and a current rating of 0.5A, 1A, and 1.8A.
This connector is suited for data and power applications requiring a compact USB Micro B interface. It provides a mating cycle durability of 10,000 cycles and operates over a temperature range of -30°C to 85°C. Termination is via solder connections, making it compatible with standard SMD assembly processes.
The part is offered in tape and reel packaging (DigiKey part A97800TR-ND) as well as cut tape and Digi-Reel options. It is classified under USB, DVI, HDMI Connector Assemblies and is RoHS3 and REACH compliant.
USB - micro B receptacle.
5 contacts.
0.5A, 1A, and 1.8A.
Surface mount, right angle, horizontal.
-30°C to 85°C.
