| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

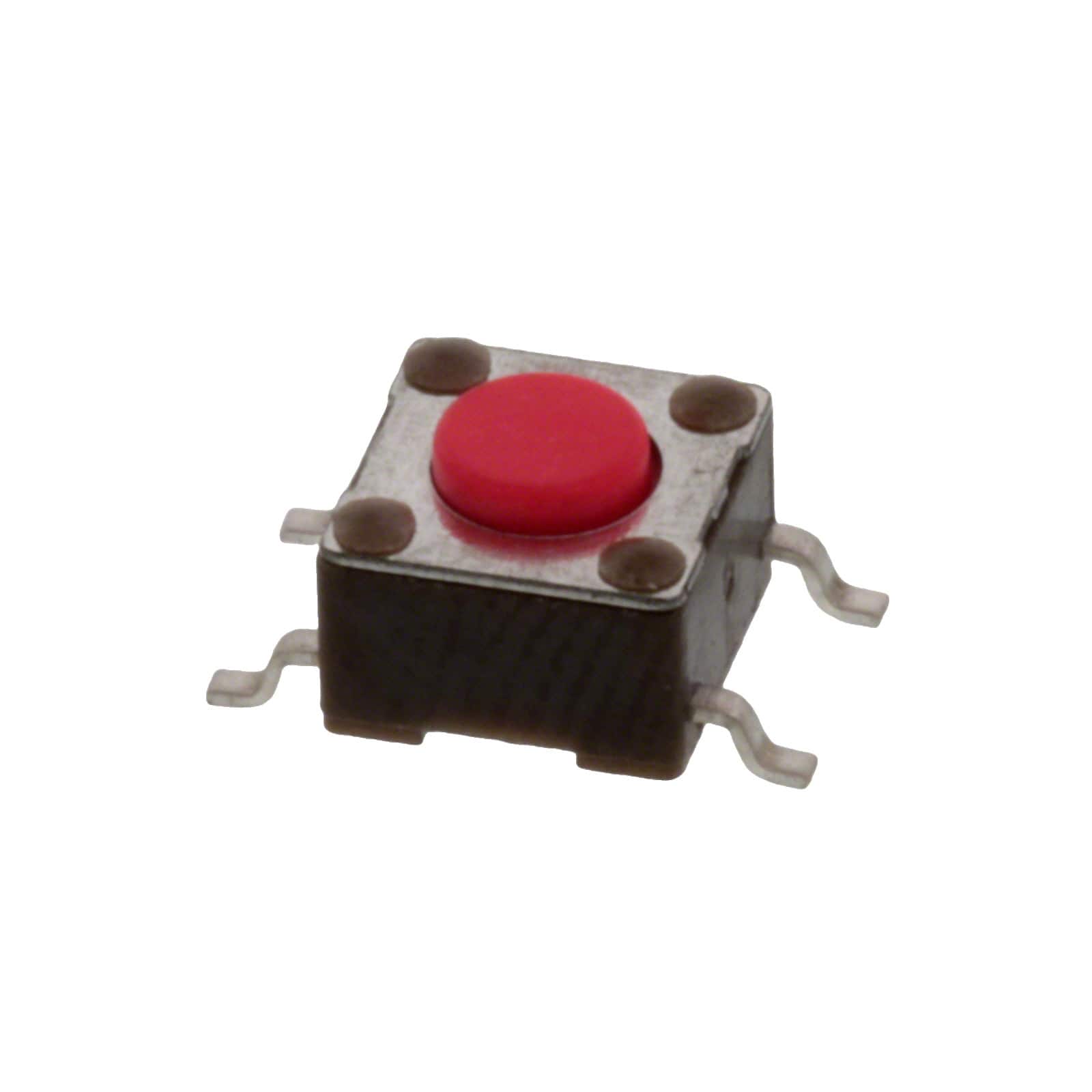

The TE Connectivity 1977223-6 is a tactile switch designed for surface mount applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration and a standard actuator type.
This switch has a contact rating of 0.05A at 24VDC and an operating temperature range of -40°C to 105°C. The termination style is gull wing, and the actuator height off the PCB is 4.30mm. The overall outline of the switch is 6.00mm x 6.00mm.
It is non-illuminated and features a top-actuated orientation. The switch function is Off-Mom (Off-Momentary). The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 105°C.
The contact rating is 0.05A at 24VDC.
This switch is designed for surface mounting.
The circuit configuration is SPST-NO (Single Pole Single Throw Normally Open).
No, this switch is non-illuminated.
