| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,687 pcs
|
5687 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Color | |
| Flammability Rating | |
| For Use With | |
| Gender | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Style | |
| Terminal Size | |
| Terminal Type |

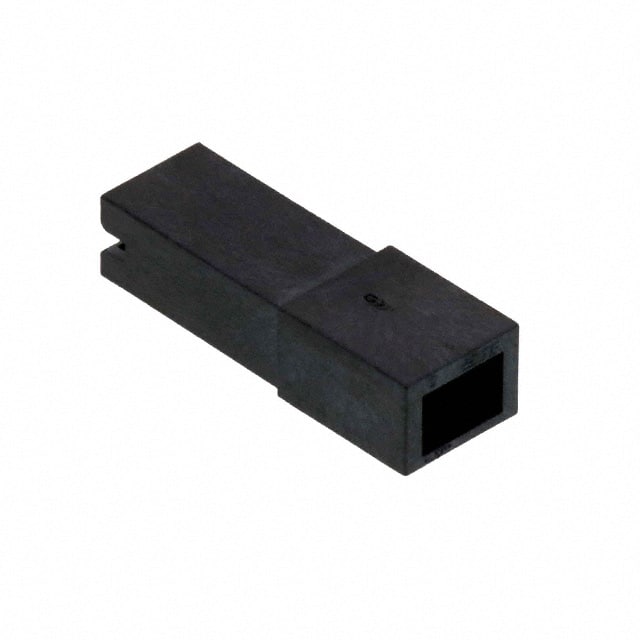

The TE Connectivity 1969877-1 is a 1-position female housing from the Positive Lock series, designed for use with 0.187" (4.75mm) quick disconnect terminals. It features a free hanging (in-line) mounting style and is constructed from high-temperature liquid crystal polymer (LCP) material, making it suitable for applications requiring operation up to 240°C. The housing is black in color and meets UL 94 V-0 flammability requirements.
This housing provides insulation and secure retention for quick connect connections, with an integral lever lock that ensures reliable mating and easy removal via deflection. It is intended for use with female quick disconnect receptacles and is commonly applied in appliance, automotive, and industrial wiring harnesses where high temperature resistance is critical.
All specifications are based on available data for the 1969877-1 part number. Material and temperature ratings are inferred from the Positive Lock high temperature housing family and may not be part-specific confirmed values.
This housing has 1 position.
The mounting type is Free Hanging (In-Line).
The housing is made of Liquid Crystal Polymer (LCP).
The housing is rated for operation up to 240°C.
It is designed for 0.187" (4.75mm) quick connect terminals.
