| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,290 pcs
|
1290 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Color | |
| Flammability Rating | |
| For Use With | |
| Gender | |
| Glow Wire | |
| Glow Wire Test | |
| Housing Color | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Max | |
| Style | |
| Terminal Size | |
| Terminal Type | |
| UL 94 V-0 |

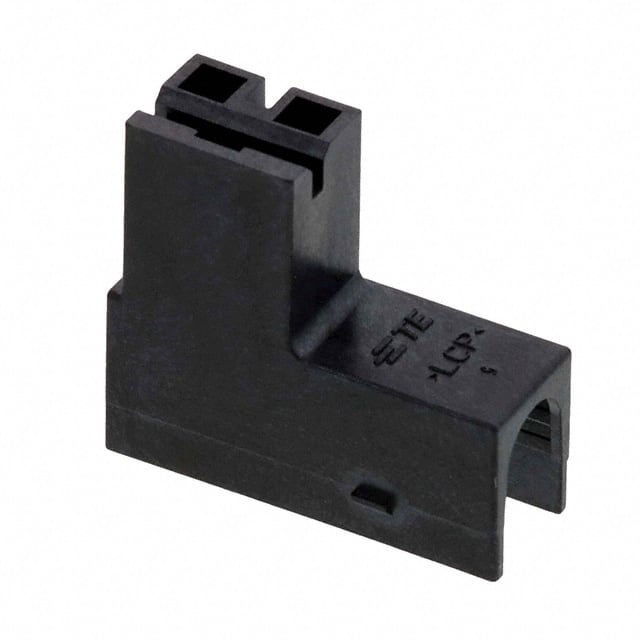

The TE Connectivity 1969823-1 is a 1 position female receptacle housing from the Positive Lock Mark II series. This housing is designed for use with 0.250" (6.35mm) quick disconnect and flag terminals. It features a free hanging (in-line) mounting style, making it suitable for wire-to-wire or wire-to-tab connections where a secure, removable termination is required.
The housing is molded from high-temperature LCP (Liquid Crystal Polymer) material in black color, rated for continuous operation up to 240°C. It meets UL 94 V-0 flammability requirements and passes Glow Wire testing, ensuring reliability in high-temperature or fault-prone environments. The housing also serves as a removal tool for the Positive Lock receptacle, which requires deflection of an integral repressor for tab release.
This component is commonly used in appliance, automotive, and industrial applications such as refrigerators, dishwashers, ranges, and control cabinets. It accepts 0.032" thick mating tabs and is compatible with TE application tooling for consistent crimp quality.
LCP (Liquid Crystal Polymer) rated to 240°C maximum operating temperature.
UL 94 V-0. It also passes Glow Wire testing.
Free hanging (in-line) mounting.
1 position.
0.250" (6.35mm) quick disconnect and flag terminals.
