1969784

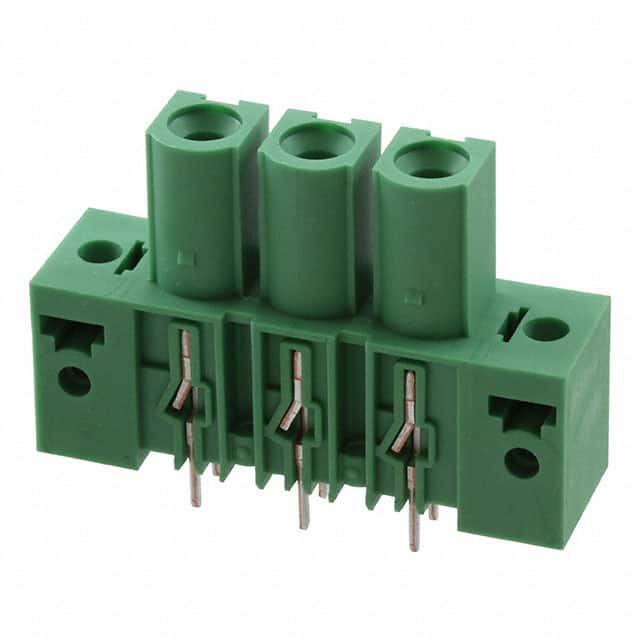

The Phoenix Contact 1969784 (IPCV 16/3-GF-10,16) is a 3-position terminal block header designed for high-power applications. It features a vertical orientation with a 10.16mm pitch, making it suitable for PCB layouts requiring high density. The header uses female socket contacts with a silver mating finish, ensuring reliable connections.

Rated for a nominal current of 76A and a rated voltage of 1000V (III/2), this header can handle significant power. It also meets UL/CUL Use Group B and C ratings of 300V and 66A, and Use Group D at 600V and 5A. The insulating material is PA (polyamide) with V0 flammability class per UL 94, providing good thermal and fire resistance.

The header includes a mating and mounting flange for secure attachment to the mating connector. It is designed for through-hole soldering, with pin dimensions of 0.8 x 1.2 mm and a hole diameter of 1.7 mm. The overall length is 13.6 mm, with a dimension a of 20.32 mm. The green color and tin metal surface are standard for this series.

Packaging is in quantities of 50 pieces per pack. The product is RoHS compliant since 2003, and has certifications including CB, CCA, CUL, SEV, and UL.
