| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Gauge or Range |

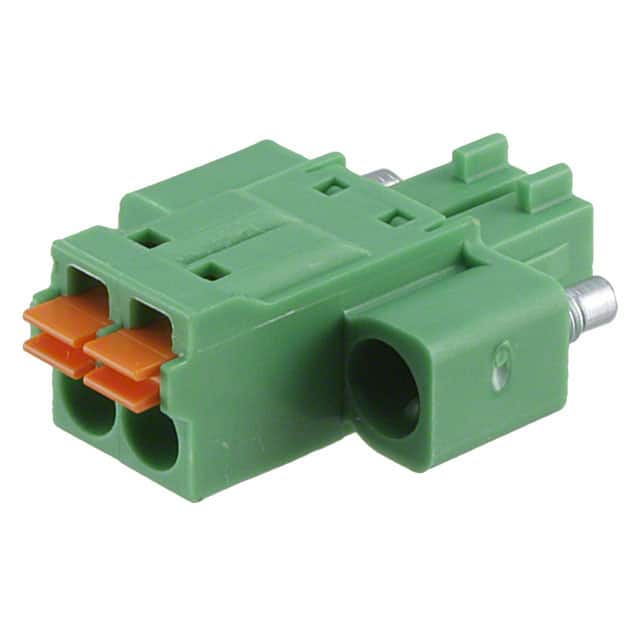

The Phoenix Contact 1966091 is a 2-position terminal block plug designed for wire-to-board or wire-to-wire connections. It features female sockets and a screwless push-in spring termination style, enabling fast and tool-free wiring for solid or ferruled conductors.
This plug accepts wire gauges from 0.2 to 1.5 mm² and provides a 180-degree plug wire entry for straightforward routing. The housing is green and includes a mating flange for secure locking when paired with a matching header.
Rated at 8A and 150V with tin-plated contacts, this component is suitable for low-power signal and control applications in industrial automation and building infrastructure. The free hanging (in-line) mounting allows flexible placement without a fixed panel opening.
The 1966091 has 2 positions.
The pitch is 3.50 mm (0.138 in).
The current rating is 8 A.
The voltage rating is 150 V.
The mounting type is free hanging (in-line).
