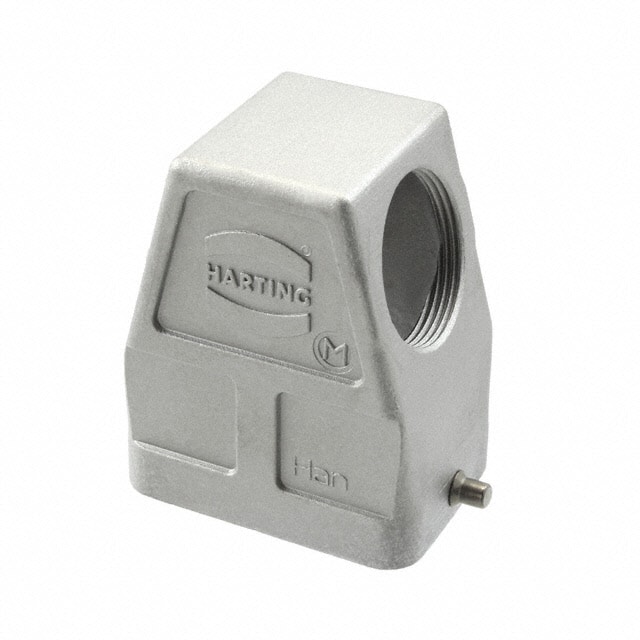

19628060547 Harting Han EMC/B-HSE-M32 (HT) hood, side entry, size 6B, with single M32 cable entry and single locking lever. Aluminum die-cast housing, uncoated, rated IP65/IP66.
Mfr Part #:

19628060547

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han EMC/B-HSE-M32 (HT) hood, side entry, size 6B, with single M32 cable entry and single locking lever. Aluminum die-cast housing, uncoated, rated IP65/IP66.
✓ Total Stock: 1 pcs

19628060547 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19628060547 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Country of Origin
Failure Rate
Height
Housing Material
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
SVHC Present
Style
Surface Finish
Thread Size
Weight
Width
View Similar Products (0)

19628060547 Description

Short technical summary and product information.

This Harting Han® EMC/B-HSE-M32 (HT) hood is a side-entry heavy-duty connector hood with a size 6B profile and a single M32 cable entry. It features a single locking lever mechanism and is constructed from aluminum die-cast with an uncoated surface.



Key specifications include an ingress protection rating of IP65 and IP66, UL 50/50E type ratings of 4 and 12, and a limiting temperature range of -40°C to +125°C (up to +200°C with Han® High Temp components). It is rated for at least 500 mating cycles.



The hood accepts a single M32 cable entry and weighs 113 g. It is RoHS, ELV, and REACH compliant, with CE, DNV GL, UL 1977, and CSA C22.2 No. 182.3 approvals. The locking clip is located on the base bottom.

19628060547 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han EMC/B
Canonical Name: Han 6EMC/B-HSE-M32 (HT) Hood, Side Entry, Size 6 B, M32
Subcategory: Hood

19628060547 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: Compliant

19628060547 Features

  • Side entry design for flexible cable routing.
  • Single M32 cable entry thread size.
  • Aluminum die-cast housing, uncoated surface.
  • IP65 and IP66 ingress protection rated.
  • Rated for 500 mating cycles minimum.

19628060547 Applications

  • Industrial machinery cable entry applications.
  • Used in heavy-duty connector systems.
  • Suitable for harsh environment enclosures.
  • Compatible with Han EMC/B and High Temp series.

19628060547 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP65 and IP66 per IEC 60529.

What is the operating temperature range?

-40°C to +125°C standard; up to +200°C with Han® High Temp components.

How many cable entries does it have?

One M32 cable entry.

What is the locking type?

Single locking lever with locking clip on the base bottom.

What material is the housing made of?

Aluminum die-cast, uncoated.

What approvals does this hood carry?

CE, DNV GL, UL 1977, CSA C22.2 No. 182.3.
