| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

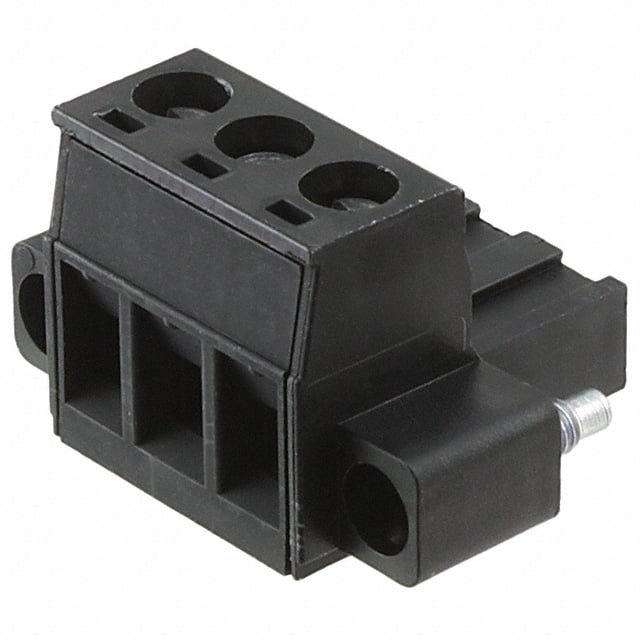

The Phoenix Contact 1961973 is a 3-position terminal block plug with female socket contacts. It features a 5.08mm pitch and is rated for 15A at 300V. The plug uses a screw rising cage clamp termination style, ensuring secure wire connections. It supports wire gauges from 0.2 to 2.5 mm².
The plug is designed for free hanging (in-line) mounting with a 180° wire entry and includes a mating flange for secure locking with compatible headers. The contacts are finished with tin for reliable electrical performance. The housing is black.
This plug is suitable for industrial control systems, sensor/actuator wiring, and panel connections. It is RoHS and REACH compliant, and has an MSL rating of 1 (unlimited).
3 positions.
5.08mm (0.200 inches).
15 A.
300 V.
Free Hanging (In-Line).
Screw - Rising Cage Clamp.
0.2 to 2.5 mm².
