| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

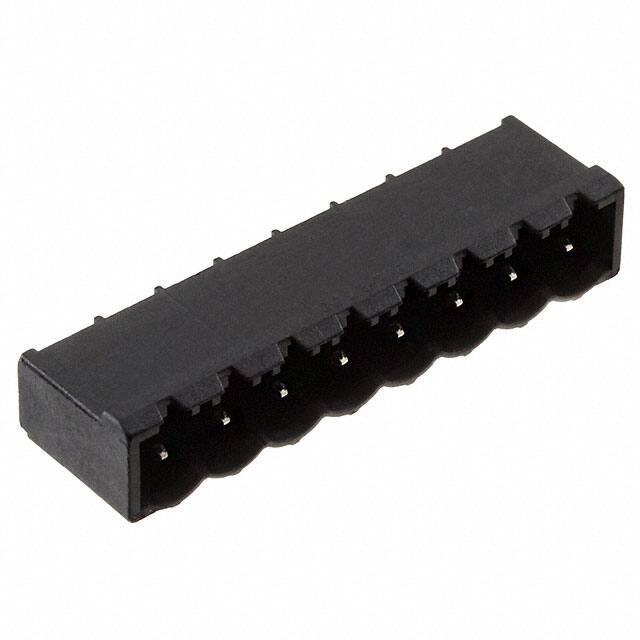

The Phoenix Contact 1954980 is a terminal block header with 8 positions in a single level. It features a 5.08mm (0.200") pitch and a right angle (90°) orientation, making it ideal for compact PCB layouts. The header is shrouded on all four sides, providing mechanical protection and preventing accidental contact with live terminals.
This component is designed for through hole mounting with solder termination. The contact mating finish is tin, ensuring reliable electrical connections. Electrical ratings are 10A at 300V, suitable for many industrial and automation applications.
The housing is black in color, offering a standard appearance for control panels and equipment. The header is part of the Phoenix Contact terminal block family, known for robust construction and ease of use in wire-to-board connections.
8 positions.
5.08mm (0.200").
10 A.
300 V.
Through hole.
90°, right angle.
