| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,000 pcs
|
21000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Housing Color | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Standard | |
| Packaging Type | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style |

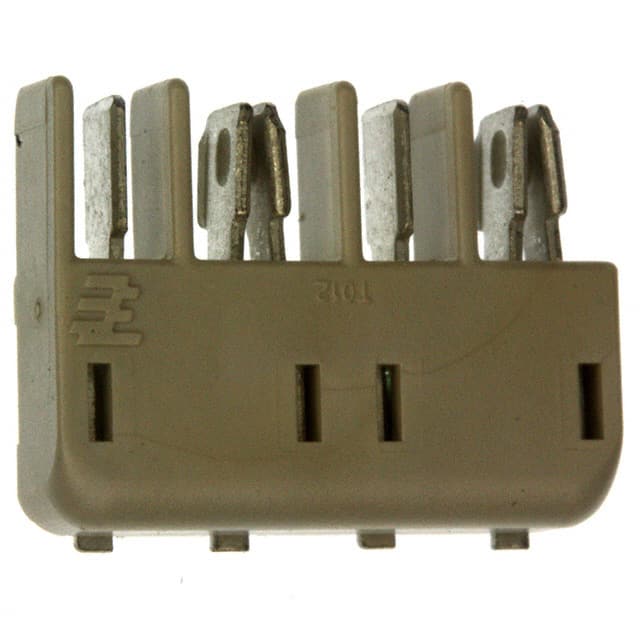

The 1954289-2 is a 4-position hermaphroditic blade and receptacle connector from TE Connectivity, part of the 1954289 series of solid state lighting (SSL) connector assemblies. This connector features a unique hermaphroditic design that allows both blade and receptacle functions in a single component, simplifying mating and reducing inventory. It is designed for board-to-board connections in SSL applications.
Key specifications include a 4.00mm pitch and support for board edge, surface mount, and right angle mounting configurations. The housing is made of Liquid Crystal Polymer (LCP) in a natural color, providing excellent thermal and mechanical properties. Contacts are copper alloy with a tin finish, ensuring reliable solder connections. The connector is RoHS3 compliant and packaged in tape and reel per EIA-481 standards, ready for automated assembly.
The operating temperature range is -40°C to 105°C, making it suitable for a variety of environments. The 1954289-2 is ideal for use in LED lighting modules, lighting control systems, and other SSL applications where compact, reliable connections are required.
4 positions.
4.00mm (0.157 inches).
Board edge, surface mount, and right angle mounting.
Liquid Crystal Polymer (LCP).
Tin finish.
-40°C to 105°C.
Yes, RoHS3 compliant per Directive 2002/95/EC.
