1953774 16-position shrouded header with 3.5mm pitch, 2 levels, right angle orientation, rated 8A and 150V. Through hole solder termination.
Mfr Part #:

1953774

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
16-position shrouded header with 3.5mm pitch, 2 levels, right angle orientation, rated 8A and 150V. Through hole solder termination.
✓ Total Stock: 80 pcs

1953774 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1953774 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1953774 Description

Short technical summary and product information.

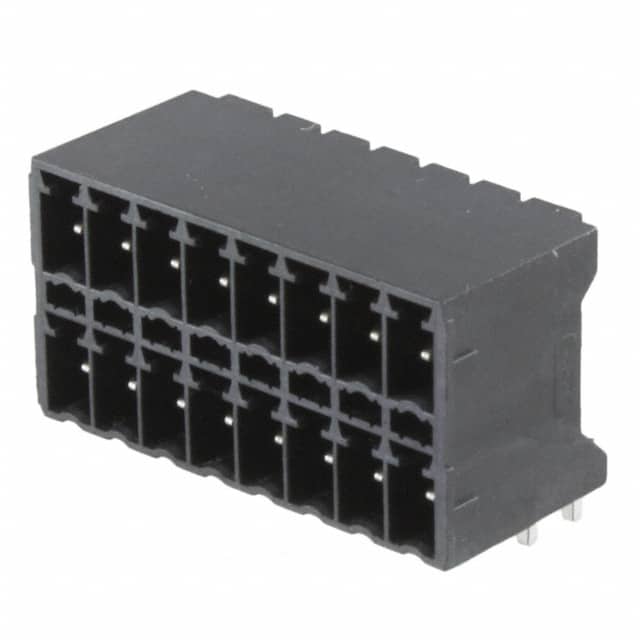

The Phoenix Contact 1953774 is a 16-position terminal block header with male pins, shrouded on 4 sides. It features two levels with 8 positions per level at a 3.5mm pitch. The header is designed for through-hole mounting with right-angle orientation, making it suitable for compact PCB layouts where wire connections are perpendicular to the board. Electrical ratings include 8A current and 150V voltage, with tin-plated contacts for reliable solder connections. The black housing provides clear visual identification. This header is commonly used in industrial control systems and automation equipment for secure wire-to-board connections.

1953774 Quick Information

Product Type: Terminal Block Header
Canonical Name: Terminal Block Header, Male Pins, Shrouded (4 Side), 16 Positions, 2 Levels, 3.5mm Pitch, Through Hole, Solder, Right Angle, 8A, 150V, Tin
Subcategory: Shrouded Header

1953774 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

1953774 Features

  • 16 positions in 2 levels for space saving.
  • 3.5mm pitch for compact wiring.
  • Right angle orientation for perpendicular connections.
  • Rated 8A current and 150V voltage.
  • Tin-plated contacts for reliable solder joints.

1953774 Applications

  • Used in industrial control panels for wire termination.
  • Suitable for automation equipment PCB connections.
  • Ideal for signal and power distribution in compact designs.

1953774 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1953774 header have?

16 positions, arranged in 2 levels with 8 positions per level.

What is the pitch of the Phoenix Contact 1953774?

3.5mm (0.138 inches).

What is the current rating?

8A.

What is the voltage rating?

150V.

What is the mounting type?

Through hole, right angle orientation.

What is the termination style?

Solder.

What is the contact plating?

Tin.
