| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
640 pcs
|
640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

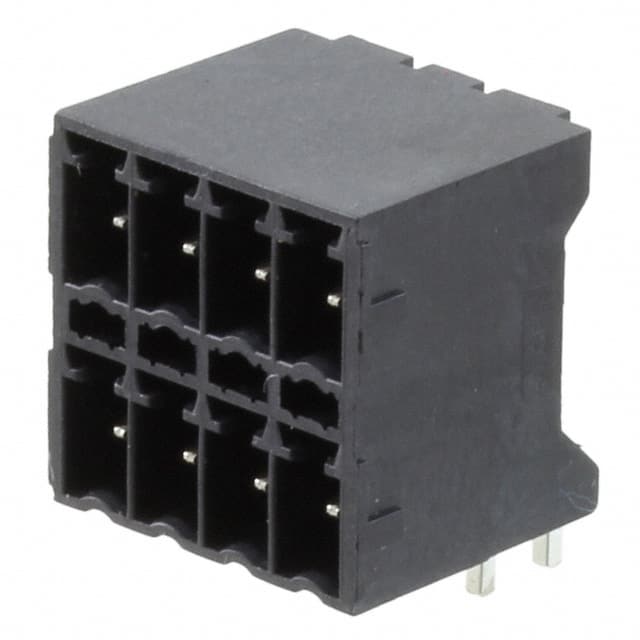

The Phoenix Contact 1953732 is an 8-position terminal block header part of the terminal block connector family. It features a 3.50mm pitch and a right angle orientation, making it suitable for compact PCB layouts where space is constrained. The shrouded design provides protection for the male pins and helps ensure secure mating with corresponding plug connectors.
Rated for 150V and 8A, this header is suited for signal and power distribution in industrial control systems, building automation, and similar applications. The through hole mounting and solder termination provide a reliable mechanical and electrical connection to the printed circuit board.
The header is black in color and has 4 positions per level across 2 levels. The contact mating finish is tin, offering good solderability and corrosion resistance. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
The header has 8 positions, arranged as 2 levels of 4 positions each.
The pitch is 3.50mm (0.138 inches).
The voltage rating is 150V and the current rating is 8A.
The header is through hole mounted with solder termination.
