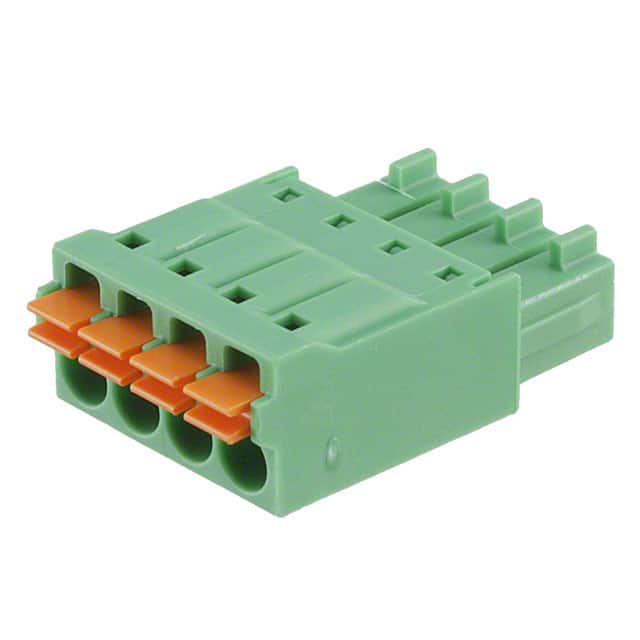

1952283 Phoenix Contact 1952283 is a 4-position terminal block plug with 3.5mm pitch, push-in spring termination, rated 150V and 8A.
Mfr Part #:

1952283

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1952283 is a 4-position terminal block plug with 3.5mm pitch, push-in spring termination, rated 150V and 8A.
✓ Total Stock: 11 pcs

1952283 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1952283 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1952283 Description

Short technical summary and product information.

The Phoenix Contact 1952283 is a MINI COMBICON FMC 1,5/4-ST-3.5 plug with female sockets, designed for free hanging (in-line) mounting. It features a 3.5mm pitch and a compact 7.5mm height, enabling high packing density on PCBs.



This plug uses a screwless push-in spring termination style, accepting solid and stranded conductors from 0.2 to 1.5 mm² (24-16 AWG) with a 10 mm stripping length. The green insulating material is PA with a UL 94 V0 flammability rating.



Electrical ratings include 150V (IEC) and 8A, with a rated surge voltage of 2.5 kV. The contact mating finish is tin. Standard packaging is 50 pieces per packet.

1952283 Quick Information

Product Type: Terminal Block Plug
Series: FMC 1,5/...-ST-3,5
Canonical Name: Phoenix Contact MINI COMBICON FMC 1,5/4-ST-3.5 Plug, Female Sockets, 4 Position, 3.5mm Pitch, Push-In Spring Termination
Subcategory: Headers, Plugs and Sockets

1952283 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1952283 Features

  • 4-position plug with 3.5mm pitch.
  • Screwless push-in spring termination.
  • Rated for 150V and 8A operation.
  • Accepts 0.2-1.5 mm² solid/stranded wire.
  • Compact 7.5mm height for dense layouts.

1952283 Applications

  • Ideal for compact PCB terminal block connections.
  • Used in industrial control and automation systems.
  • Suitable for signal and power distribution wiring.
  • Perfect for space-constrained module designs.

1952283 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the Phoenix Contact 1952283?

The pitch is 3.50 mm (0.138 inches).

How many positions does the 1952283 have?

It has 4 positions.

What is the voltage and current rating of the 1952283?

The voltage rating is 150 V and the current rating is 8 A.

What type of termination does the 1952283 use?

It uses screwless push-in spring termination.

What wire sizes are compatible with the 1952283?

It accepts solid and stranded conductors from 0.2 to 1.5 mm² (24-16 AWG).

What is the mounting type of the 1952283?

Free hanging (in-line) mounting.

What is the flammability rating of the 1952283?

UL 94 V0.
