| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Fire Protection on Railway Vehicles | |
| Halogen Free | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Lock Location | |
| Locking Type | |
| Material Flammability Class | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Quantity | |
| SVHC Present | |
| Style | |
| Thread Size |

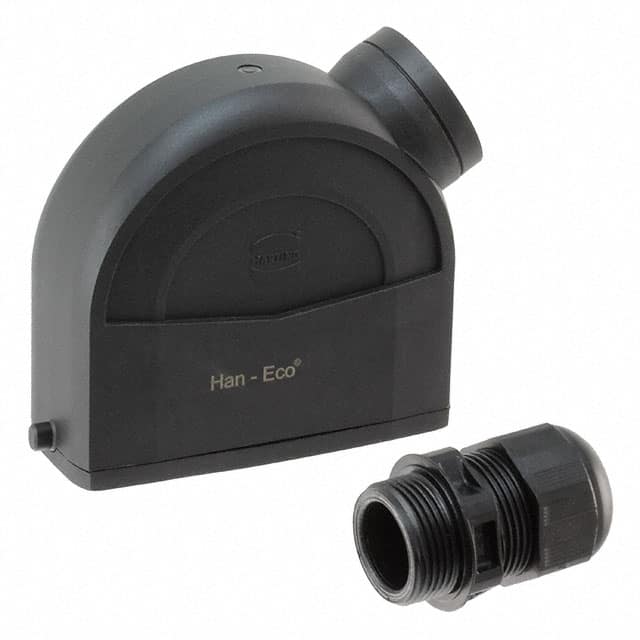

The Harting 19461160545 is a Han-Eco 16A side entry hood designed for heavy-duty connector applications. It features an integrated M20 cable gland and a single locking lever for secure mating. The hood is made from polyamide (PA) glass-fibre reinforced material in RAL 9005 (jet black) and meets IP65 ingress protection.
Electrical and mechanical specifications include an operating temperature range of -40°C to 125°C, a clamping range of 6 to 13 mm, and a minimum of 500 relockings. The housing has a UL 94 V-0 flammability rating. The part weighs 79.8 g and is manufactured in Germany.
Compliance includes RoHS with exemption (6(c) for lead), REACH SVHC (lead), and California Proposition 65 (lead, nickel). It also meets EN 45545-2 fire protection requirements for railway vehicles. The product is intended for use in industrial automation, railway, and harsh environment applications.
IP65 (dust tight and water resistant).
-40°C to 125°C.
Single locking lever.
Polyamide (PA) glass-fibre reinforced, RAL 9005 (jet black).
6 to 13 mm.
Yes, compliant with exemption (6(c): Copper alloy containing up to 4% lead by weight).
UL 94 V-0.
