| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| Clamping Range | |
| Connector Type | |
| Features | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Material Flammability Class | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

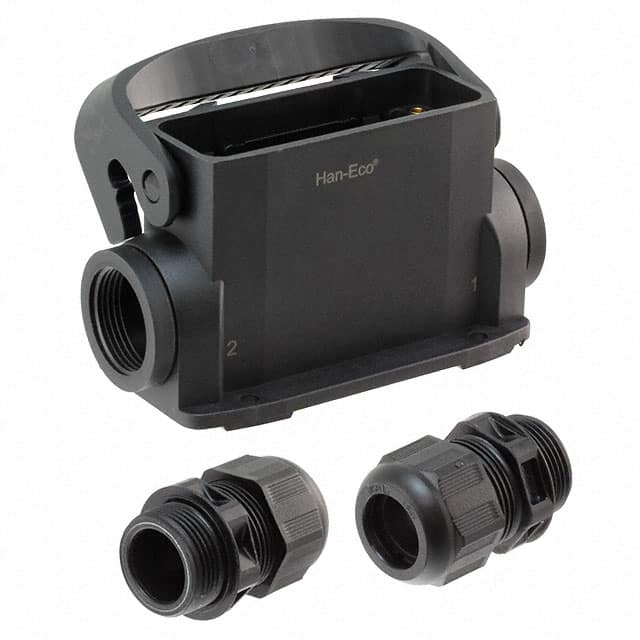

The Harting Han-Eco 16A-HSM2-M25 (part number 19461160291) is a surface mount housing designed for heavy-duty connector applications. It features a side entry configuration with two M25 cable entries and an integrated cable gland. The housing is made of glass-fiber reinforced polyamide (PA) in RAL 9005 jet black color, providing robust mechanical protection.
This housing is rated IP65 per IEC 60529, offering dust tightness and water resistance. It operates over a temperature range of -40°C to +125°C and can withstand at least 500 relockings. The locking mechanism uses a single locking lever, and the clamping range accommodates cables from 9 to 17 mm diameter.
The housing material meets UL 94 V-0 flammability class. It is part of the Han-Eco A series and is designed for use as a connector according to IEC 61984. Note that this product is no longer orderable; contact your local distribution partner for alternatives.
IP65 per IEC 60529, dust tight and water resistant.
-40°C to +125°C.
Two M25 cable entries.
Glass-fiber reinforced polyamide (PA), color RAL 9005 jet black.
UL 94 V-0.
Single locking lever.
9 to 17 mm.
