| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Automotive Grade | |
| Clamping Range | |
| Connector Type | |
| Fire Protection | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material Flammability Class | |
| Mounting Type | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Standards | |
| Style | |
| Thread Size | |
| Width |

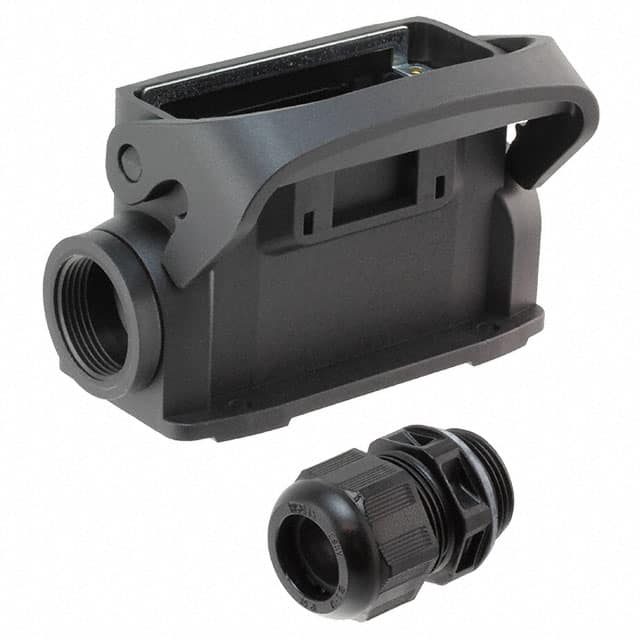

The Harting Han-Eco 16A-HSM1-M25 (part number 19461160251) is a surface mount housing from the Han-Eco A series. It features a side entry design with a single M25 cable entry and an integrated cable gland. The housing is made of fibreglass-reinforced polyamide (PA) in RAL 9005 jet black, providing robust mechanical protection.
This housing is rated IP65 for dust tightness and water resistance, and operates over a temperature range of -40°C to 125°C. It uses a single locking lever mechanism and is rated for at least 500 relocking cycles. The clamping range accommodates cables from 9mm to 17mm diameter.
The housing material meets UL 94 V-0 flammability class. It complies with IEC 61984 and EN 45545-2 fire protection standards (R22/R23 HL 1-3). The part is RoHS compliant with exemption 6(c) for lead in copper alloy. Dimensions are 80.50mm x 50.00mm x 47.00mm and net weight is 130g.
IP65 per IEC 60529, dust tight and water resistant.
-40°C to 125°C.
Fibreglass-reinforced polyamide (PA), UL 94 V-0.
Clamping range 9mm to 17mm.
Single locking lever, rated for at least 500 relocking cycles.
80.50mm x 50.00mm x 47.00mm, net weight 130g.
Yes, RoHS compliant with exemption 6(c) for lead in copper alloy up to 4%.
