| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| Country of Origin | |
| Features | |
| Fire Protection Railway | |
| Flammability Rating (Housing) | |
| Flammability Rating (Locking Levers) | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Lock Location | |
| Locking Lever Material | |
| Locking Type | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Seal Material | |
| Standards Met | |
| Style | |
| Thread Size |

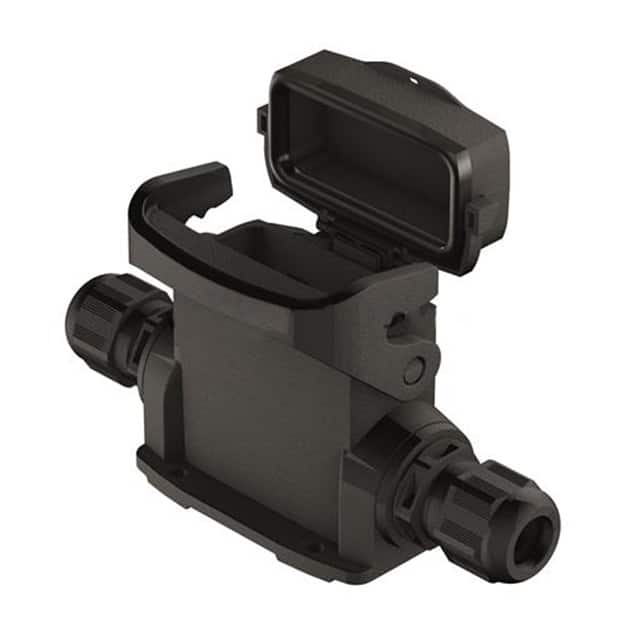

The Harting 19461100293 is a Han-Eco 10A-HSM2-M25 surface mounted housing designed for heavy-duty connector applications. It features a side entry configuration with two M25 cable entries and a single locking lever for secure closure. The housing is made from glass-fibre reinforced polyamide (PA) in RAL 9005 jet black, with an NBR seal. It provides IP65 protection against dust and water jets per IEC 60529. The operating temperature range is -40°C to +125°C, and the housing meets UL 94 V-0 flammability ratings for both the housing and locking levers. It is suitable for use as a connector per IEC 61984 and complies with EN 45545-2 fire protection standards for railway applications. The part includes a thermoplastic cover and integrated cable gland, with a clamping range of 9 to 17 mm.
IP65 per IEC 60529, providing dust tight and water resistant protection.
-40°C to +125°C (limiting temperature per IEC 61984).
Glass-fibre reinforced polyamide (PA), colour RAL 9005 jet black.
Two cable entries, each M25 thread size.
UL 94 V-0 for both housing and locking levers.
Yes, RoHS compliant with exemption 6(c) for copper alloy containing up to 4% lead by weight.
