| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Size | |
| California Proposition 65 | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| ELV | |
| Features | |
| Fire Protection | |
| Flammability Rating | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Lock Location | |
| Locking Type | |
| Mounting Type | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Package Quantity | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Thread Size |

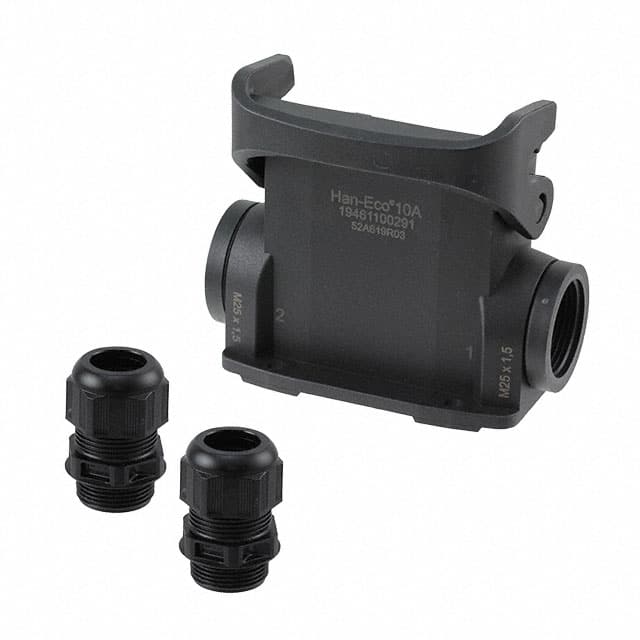

The Harting 19461100291 is a surface mounted housing from the Han-Eco A series, designed for heavy-duty connector applications. It has a size 10A designation and a side entry style with two M25 cable entries. The housing is made of glass-fibre reinforced polyamide (PA) in RAL 9005 jet black and provides IP65 protection against dust ingress and water jets. Locking is achieved via a single locking lever, rated for at least 500 relocking cycles. The operating temperature range is -40°C to +125°C. This housing includes integrated cable glands and a feed-through feature. The material flammability class is UL94 V-0 for both the housing and locking levers.
IP65 (dust tight, water resistant) per IEC 60529.
-40°C to +125°C.
Polyamide (PA), glass-fibre reinforced.
Two M25 cable entries.
Single locking lever, rated for at least 500 relockings.
UL94 V-0 for housing and locking levers.
RoHS compliant with exemption 6(c). REACH contains SVHC: Lead.
