| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Clamping Range | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| ETIM Class | |
| Failure Rate | |
| Features | |
| Fire Protection Railway | |
| Flammability Rating | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Package Type | |
| Packaging Size | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Thread Size | |
| Width |

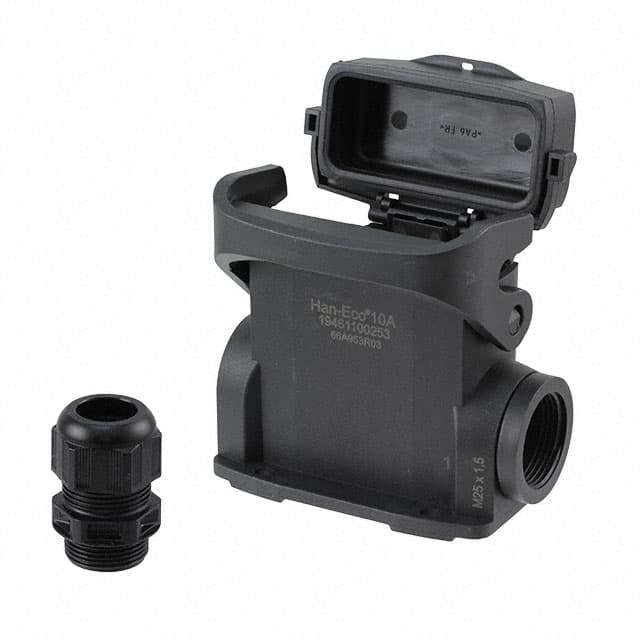

The Harting 19461100253 is a Han-Eco® A series surface mount housing designed for heavy duty connector applications. It features a side entry configuration with a single M25 cable entry and a locking clip on the base bottom. The housing is made of glass-fibre reinforced polyamide (PA) with a black RAL 9005 finish, providing durability and a V-0 flammability rating per UL 94.
This housing offers IP65 ingress protection, making it suitable for environments requiring dust tightness and water resistance. It operates over a temperature range of -40°C to +125°C per IEC 61984. The integrated cable gland accommodates cables with a clamping range of 9 to 17 mm. The single locking lever ensures secure mating with compatible inserts.
The housing includes a thermo-plastic cover and is designed for box mounting. It has dimensions of 80.60 mm length, 50.00 mm width, and 61.15 mm height, with a net weight of 135 g. The product is manufactured in Germany and complies with RoHS, REACH, and other environmental standards.
IP65 per IEC 60529, dust tight and water resistant.
-40°C to +125°C per IEC 61984.
Cables with a clamping range of 9 to 17 mm.
Glass-fibre reinforced polyamide (PA), black RAL 9005.
V-0 per UL 94 for both housing and locking levers.
Yes, it includes a thermo-plastic cover.
Single locking lever with locking clip on base bottom.
