1945148 Phoenix Contact 1945148 is a 7-position vertical header terminal block with 3.5mm pitch. It features through hole mounting, solder termination, and tin-plated contacts rated for 300V and 10A.
Mfr Part #:

1945148

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1945148 is a 7-position vertical header terminal block with 3.5mm pitch. It features through hole mounting, solder termination, and tin-plated contacts rated for 300V and 10A.
✓ Total Stock: 125 pcs

1945148 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1945148 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pin Diameter
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1945148 Description

Short technical summary and product information.

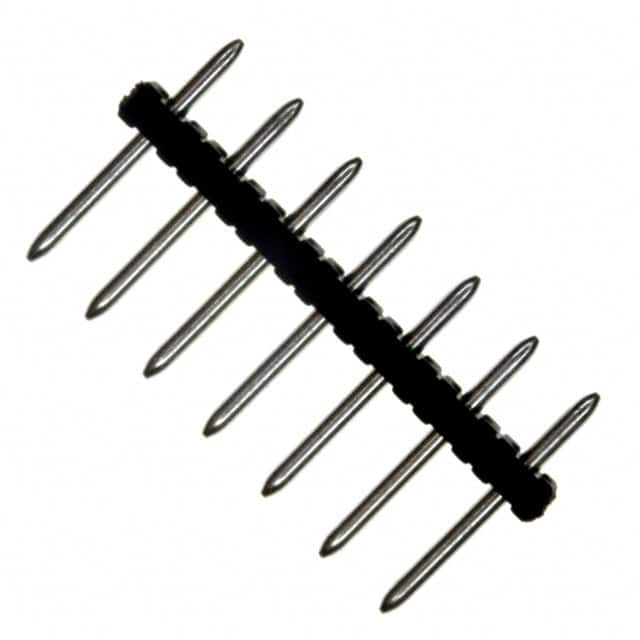

The Phoenix Contact 1945148 is a 7-position unshrouded male pin header terminal block from the COMBICON PT 1,5 series. It features a vertical orientation and a pitch of 3.50mm, making it suitable for compact PCB designs. The header has a black insulating body with a tin-plated contact mating finish. Electrical ratings are 300V and 10A per position.



The through hole termination style with solder connection ensures reliable attachment to the PCB. The hole diameter is 1.2mm and pin diameter is 0.9mm. The header is designed for use with PT 1,5 plug connectors, allowing for flexible wiring solutions. The insulating material group is I.



This header is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). Note that some compliance data is unverified. The part is commonly used in industrial control, automation, and power distribution applications where reliable, space-efficient connections are needed.

1945148 Quick Information

Product Type: Terminal Block Header
Series: PT 1,5
Canonical Name: Phoenix Contact 1945148 7-Position Vertical Header Terminal Block, 3.5mm Pitch
Subcategory: Unshrouded Header

1945148 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1945148 Features

  • 7 positions in single level vertical orientation.
  • 3.5mm pitch for compact PCB layouts.
  • Through hole solder termination for reliable connections.
  • Tin-plated contacts rated for 300V/10A.
  • Part of the COMBICON PT 1,5 series.

1945148 Applications

  • Ideal for industrial control panel wiring.
  • Used in power distribution terminal blocks.
  • Suitable for compact electronic assemblies.
  • Common in automation and process control.

1945148 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

7 positions.

What is the pitch spacing?

3.50mm (0.138").

What is the current rating?

10A per position.

What is the voltage rating?

300V.

What mounting type does this header use?

Through hole.

What is the termination style?

Solder.

What is the contact mating finish?

Tin.
