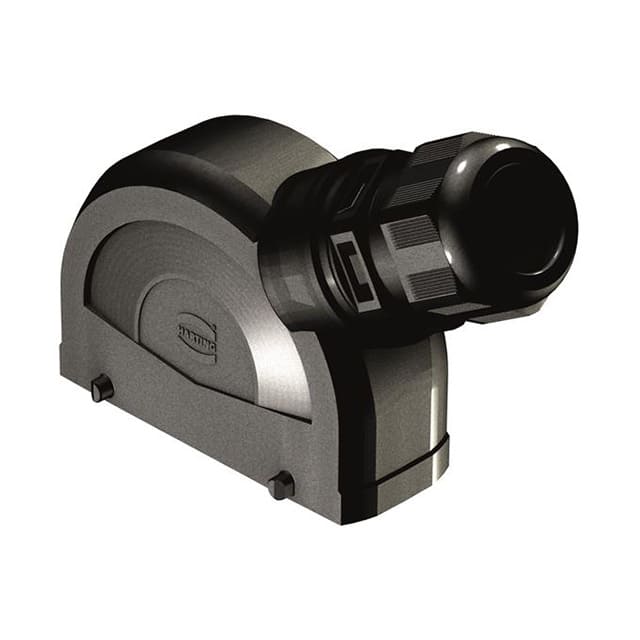

19431240527 Harting Han-Eco 24B hood with side entry and integrated M32 cable gland. Features double locking lever, IP66 protection, and polyamide housing.
Mfr Part #:

19431240527

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han-Eco 24B hood with side entry and integrated M32 cable gland. Features double locking lever, IP66 protection, and polyamide housing.
✓ Total Stock: 3 pcs

19431240527 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19431240527 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Conflict Minerals
Connector Type
Failure Rate
Halogen Free
Housing Color
Housing Material
Industrial Grade
Ingress Protection
Lock Location
Medical Grade
Military Grade
Operating Temperature
Prop 65
SVHC Present
Style
Thread Size
View Similar Products (0)

19431240527 Description

Short technical summary and product information.

The Harting 19431240527 is a Han-Eco B series hood designed for heavy duty connector applications. It features a side entry configuration with a single M32 cable entry and an integrated cable gland. The hood is made from glass-filled polyamide (PA) in black (RAL 9005) and offers a clamping range of 13 to 21 mm.



Key specifications include an IP66 ingress protection rating, making it dust tight and water resistant. The operating temperature range spans -40°C to 125°C, suitable for demanding environments. The double locking lever ensures reliable and secure mating. The housing material achieves a V-0 flammability rating per UL 94.



This hood is part of the Han-Eco modular system, allowing flexible configuration with compatible inserts and bases. It is designed for use in industrial automation, control cabinets, and railway applications where robust connectivity is required. The product is RoHS, REACH, ELV, and China RoHS compliant, and meets EN 45545-2 fire protection standards for railway vehicles.

19431240527 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han-Eco B
Canonical Name: Han-Eco 24B-HSE-for DL-M32-glanded
Subcategory: Heavy Duty Connector Hoods

19431240527 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: No

19431240527 Features

  • Side entry hood with integrated M32 cable gland.
  • Double locking lever for secure connection.
  • IP66 dust tight and water resistant.
  • Operating temperature range -40°C to 125°C.
  • Polyamide housing with V-0 flammability rating.

19431240527 Applications

  • Used in industrial automation and control systems.
  • Suitable for heavy duty connector enclosures.
  • Ideal for harsh environments requiring IP66 protection.
  • Common in railway and transportation applications.

19431240527 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating?

IP66 - Dust Tight, Water Resistant.

What is the operating temperature range?

-40°C to 125°C.

What is the housing material?

Polyamide (PA), nylon, glass filled.

What is the locking type?

Double locking lever.

What is the cable entry size?

M32.

What is the clamping range?

13 to 21 mm.

Is it RoHS compliant?

Yes, RoHS compliant.
