| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| California Proposition 65 | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| ELV | |
| Fire Protection on Railway Vehicles | |
| Halogen Free | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Material Flammability Class | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Thread Size |

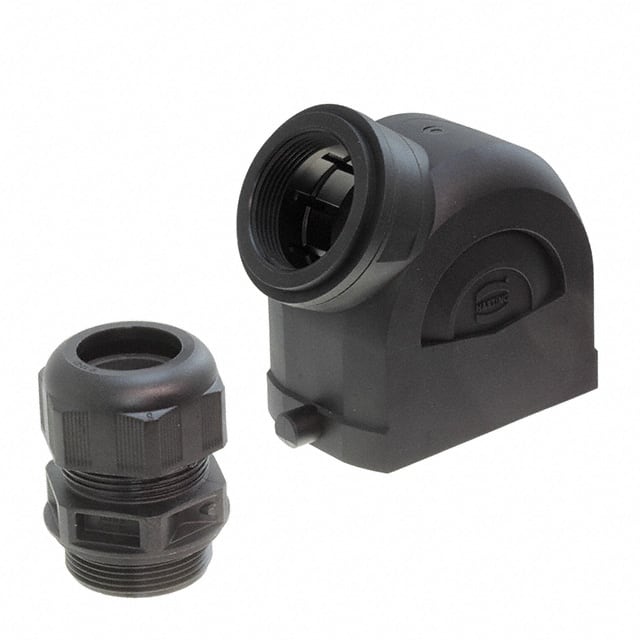

The Harting 19431100547 is a Han-Eco 10B side entry hood designed for heavy-duty connector applications. It features a single locking lever and an integrated M32 cable gland, providing a reliable and space-saving cable entry solution.
This hood is constructed from glass-fiber reinforced polyamide (PA) with a black RAL 9005 finish. It offers IP66 ingress protection against dust and water jets, and operates over a wide temperature range of -40°C to 125°C. The housing material achieves a V-0 flammability rating per UL 94.
The hood supports a clamping range of 13 to 21 mm and is rated for at least 500 relockings. It is part of the Han-Eco B series and is suitable for use as a connector according to IEC 61984.
IP66 - Dust Tight, Water Resistant.
-40°C to 125°C.
1x M32 cable entry with a clamping range of 13 to 21 mm.
Glass-fiber reinforced polyamide (PA), black (RAL 9005).
V-0 per UL 94.
