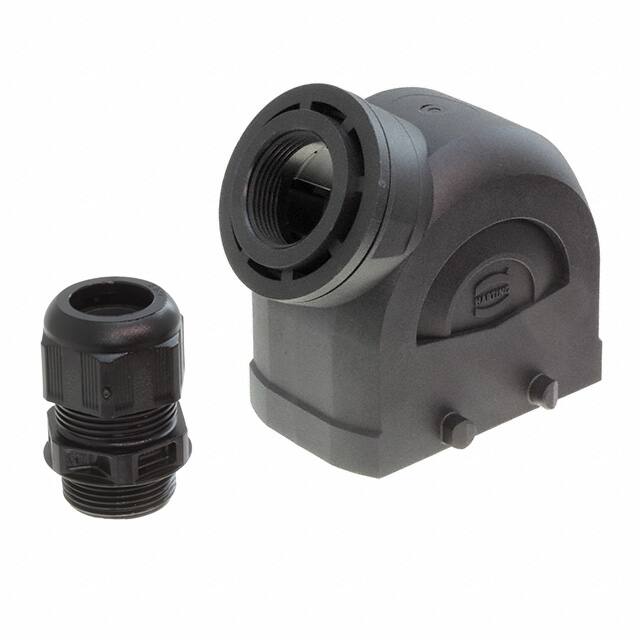

The Harting 19431100526 is a Han-Eco 10B side entry hood designed for heavy-duty connector applications. It features an integrated M25 cable gland for simplified cable entry and double locking levers for secure mating. The housing is made of glass-filled polyamide (PA) in black RAL 9005, providing durability and a UL 94 V-0 flammability rating.\n\nThis hood offers IP66 ingress protection per IEC 60529 and operates over a temperature range of -40°C to +125°C. It accommodates cable diameters from 9 to 17 mm and is rated for at least 500 relocking cycles. The design supports use as a connector according to IEC 61984.\n\nIt is part of the Han-Eco® B series, a modular system for industrial connectivity. The hood is RoHS compliant with exemption and contains lead as a REACH SVHC substance.
The hood is rated IP66 per IEC 60529, meaning it is dust-tight and protected against powerful water jets.
The limiting temperature range is -40°C to +125°C for use as a connector according to IEC 61984.
The clamping range for cables is 9 to 17 mm.
The housing is molded from glass-fiber-reinforced polyamide (PA) in black RAL 9005.
It is rated for at least 500 relocking cycles.
