| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Flammability Class | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Lock Location | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Operating Temperature Max | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size |

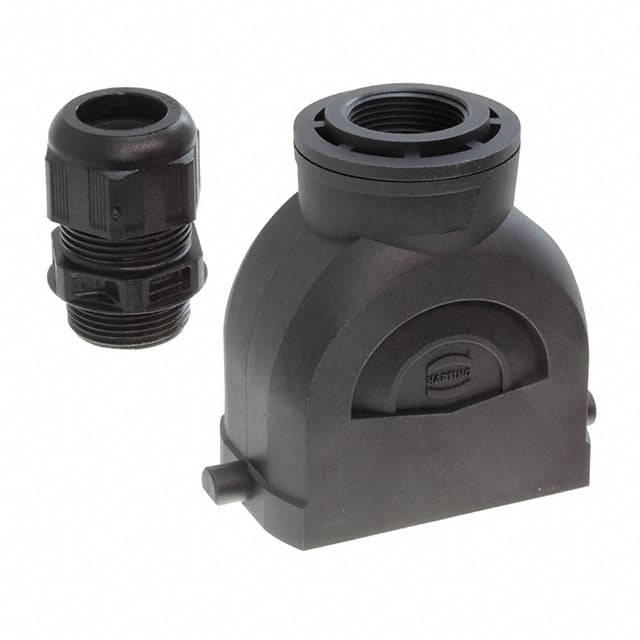

The Harting 19431100446 is a Han-Eco 10B top entry hood designed for heavy duty connector applications. It comes with an integrated M25 cable gland and a single locking lever for secure closure. The housing is made of glass-filled polyamide (PA) in RAL 9005 black, providing robust mechanical strength and V-0 flammability rating according to UL 94.
This hood offers IP66 protection against dust and water jets, making it suitable for harsh industrial environments. It operates over a wide temperature range from -40°C to 125°C. The clamping range of 9 to 17 mm accommodates various cable diameters. With a single cable entry (M25), it simplifies wiring and installation.
The hood is part of the Han-Eco B series, designed for use with compatible Han-Eco inserts and bases. It supports up to 500 relockings, ensuring long-term reliability. The component is RoHS compliant with exemption 6(c) for lead in copper alloy, and it contains lead as a REACH SVHC and California Proposition 65 substance. Country of origin is Germany.
IP66 - Dust Tight, Water Resistant per IEC 60529.
-40°C to 125°C.
Polyamide (PA), Nylon, Glass Filled, color RAL 9005 (jet black).
M25.
1 cable entry.
9 to 17 mm.
Yes, RoHS compliant with exemption 6(c) for copper alloy containing up to 4% lead by weight.
