| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Failure Rate | |
| Fire Protection | |
| Flammability Class | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Lock Location | |
| Locking Type | |
| Net Weight | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Specifications | |
| Style | |
| Thread Size |

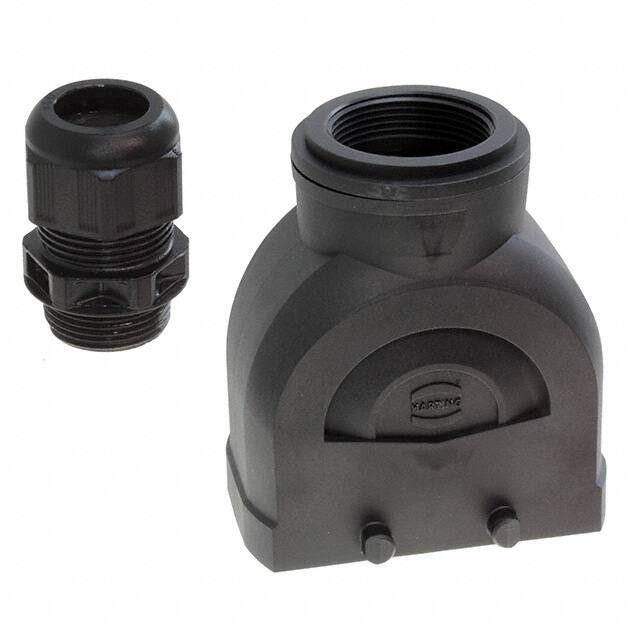

The HARTING Han-Eco 10B hood (part number 19 43 110 0426) is a heavy-duty connector hood designed for top entry applications. It features a size 10B housing with a single M25 cable entry and an integrated cable gland.
The hood is constructed from glass-filled polyamide (PA) with a black RAL 9005 finish and achieves a UL 94 V-0 flammability rating. It offers IP66 ingress protection per IEC 60529 and operates over a temperature range of -40 to +125 °C. The double locking lever provides secure, tool-free locking.
This hood is part of the Han-Eco B series and supports clamping ranges from 9 mm to 17 mm. It is rated for at least 500 relocking cycles, making it suitable for applications requiring frequent maintenance or reconfiguration.
IP66 per IEC 60529.
Polyamide (PA) with glass-fibre reinforcement.
-40 °C to +125 °C.
Yes, it has an integrated cable gland with M25 thread and a clamping range of 9 mm to 17 mm.
Double locking lever.
UL 94 V-0 and EN 45545-2 (HL1-3).
