| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Conflict Minerals | |
| Connector Type | |
| ELV | |
| Failure Rate | |
| Features | |
| Fire Protection Railway | |
| Flammability Rating (Housing) | |
| Flammability Rating (Locking Levers) | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Mounting Type | |
| Net Weight | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Width |

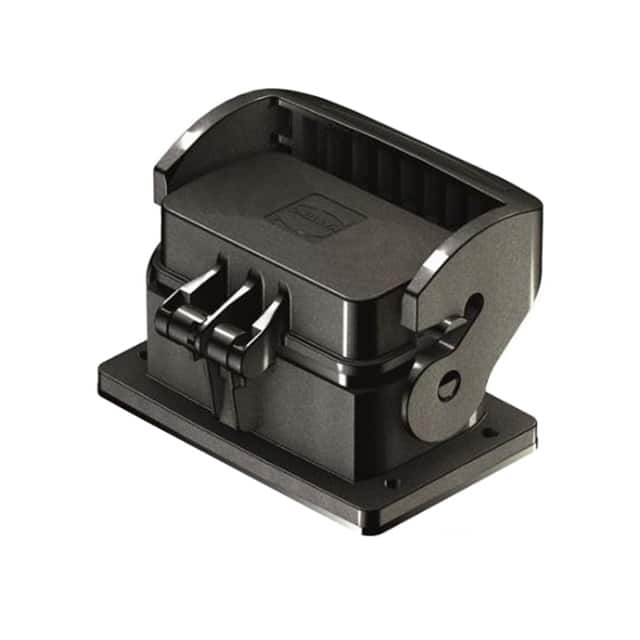

The Harting 19430100341 is a Han-Eco 10B bulkhead mounted housing (base) with a single locking lever and a thermoplastic cover. It is designed for bottom entry panel mount applications and is part of the Han-Eco® B series.
Key specifications include a size of 10 B, a polyamide (PA) glass-filled housing in black (RAL 9005), and an NBR seal. The housing and locking levers meet UL 94 V-0 flammability rating. The connector is rated IP66 for dust tight and water resistant protection.
The operating temperature range is -40°C to 125°C (limiting temperature per IEC 61984). The locking mechanism is rated for at least 500 relockings. The net weight is 135 g.
IP66 - Dust Tight, Water Resistant.
-40°C to 125°C (limiting temperature per IEC 61984).
Polyamide (PA), Nylon, Glass Filled.
Single locking lever.
UL 94 V-0 for both housing and locking levers.
≥500 relockings.
Yes, RoHS compliant per datasheet.
