| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| California Proposition 65 | |
| Connector Type | |
| Country of Origin | |
| Failure Rate | |
| Fire Protection | |
| Height | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Material Flammability Class | |
| Net Weight | |
| Number of Relockings | |
| Operating Temperature | |
| Package Quantity | |
| SVHC Present | |
| Seal Color | |
| Seal Material | |
| Specifications | |
| Style | |
| Width |

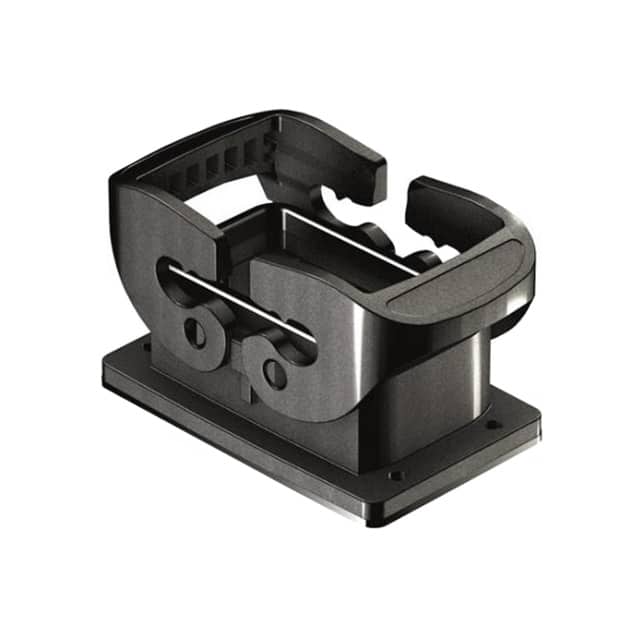

The Harting 19430100320 is a Han-Eco 10B-HBM-with DL bulkhead mounted housing designed for heavy-duty connector applications. It features a bottom entry style and a double locking lever mechanism for secure mating. The housing is made of glass-filled polyamide (PA) in black (RAL 9005) and includes an NBR seal in the same color.
This housing is rated IP66 for dust tightness and water resistance, and operates over a temperature range of -40°C to +125°C. It meets UL 94 V-0 flammability requirements and is compliant with RoHS, REACH, and EN 45545-2 fire protection standards for railway vehicles. The part is manufactured in Germany and weighs 20 g.
Designed for use with Han-Eco B series connectors, this housing supports up to 500 relockings. It is suitable for industrial environments requiring robust and reliable connector interfaces.
IP66 - Dust Tight, Water Resistant.
-40°C to +125°C.
Polyamide (PA), Nylon, Glass Filled.
UL 94 V-0.
≥500.
Double locking lever.
Yes, RoHS3 Compliant.
