| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Failure Rate | |
| Flammability Class | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Lock Location | |
| Locking Type | |
| Net Weight | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size |

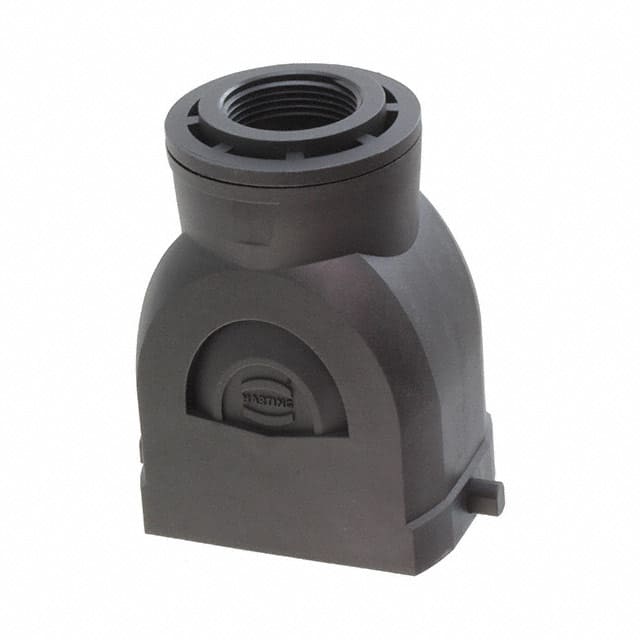

The Harting 19430060446 is a Han-Eco B series size 6B top entry hood designed for heavy duty connector applications. It features a single locking lever and accepts one M25 cable entry. The housing is made of glass-filled polyamide (PA) in black (RAL 9005) with a V-0 flammability class according to UL 94.
This hood provides IP66 protection against dust and water jets, and operates over a temperature range of -40°C to 125°C. It is rated for at least 500 relockings, ensuring reliable long-term use. The net weight is 97 g.
The part complies with RoHS (with exemption 6c), REACH (SVHC: Lead), California Proposition 65, ELV, and China RoHS. It is designed for use as a connector according to IEC 61984.
IP66 (dust tight, protected against powerful water jets).
-40°C to +125°C.
One M25 cable entry.
Glass-filled polyamide (PA), black (RAL 9005).
At least 500 relockings.
Yes, RoHS compliant with exemption 6(c) for lead in copper alloy.
UL 94 V-0.
