| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| Cable Gland Thread | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Features | |
| Fire Protection Railway | |
| Flammability Rating (Housing) | |
| Flammability Rating (Locking Levers) | |
| Housing Color | |
| Housing Material | |
| Housing Type | |
| Ingress Protection | |
| Lock Location | |
| Locking Lever Color | |
| Locking Lever Material | |
| Locking Type | |
| Module Slots | |
| Net Weight | |
| Number of Relockings | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package Quantity | |
| SVHC Present | |
| Seal Color | |
| Seal Material | |
| Style | |
| Thread Size |

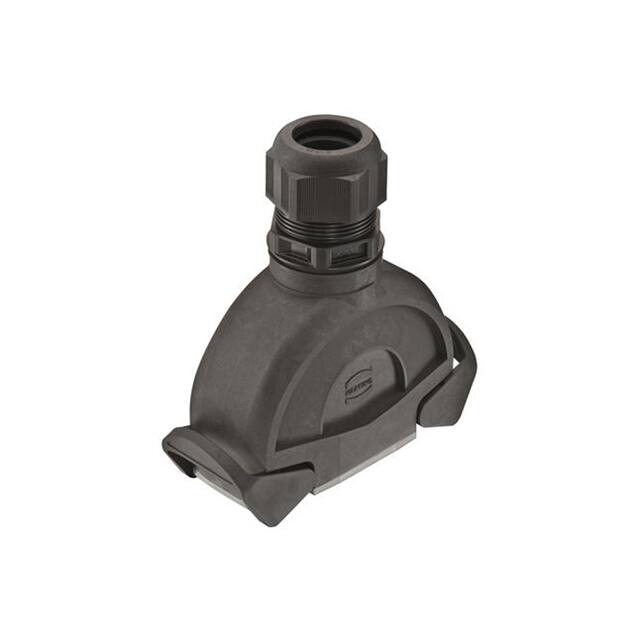

The Harting 19413240723 is a Han-Eco Modular cable to cable housing designed for heavy-duty connector applications. This size 24B housing features 7 module slots and an integrated M40 cable gland for top entry cable management. It is constructed from glass-fibre reinforced polyamide (PA) with a jet black RAL 9005 finish, providing robust mechanical protection.
The housing is rated IP65 for dust tightness and water resistance, making it suitable for industrial environments. It operates over a temperature range of -40°C to +125°C and can withstand at least 500 relocking cycles. The double locking lever mechanism ensures secure mating, and the FPM seal in silver-grey RAL 7001 provides environmental sealing.
This housing is compliant with RoHS, ELV, China RoHS, and REACH regulations. It also meets railway fire protection standards EN 45545-2 R22 and R23 for hazard levels 1-3. The housing and locking levers have a UL 94 V-0 flammability rating.
IP65 - Dust Tight, Water Resistant.
-40°C to +125°C.
Polyamide (PA), glass-fibre reinforced, color RAL 9005 (jet black).
M40 cable gland, top entry, clamping range 16 to 28 mm.
7 module slots.
UL 94 V-0 for both housing and locking levers.
Yes, RoHS compliant, ELV compliant, China RoHS e, and REACH Annex XVII/XIV/SVHC substances not contained.
