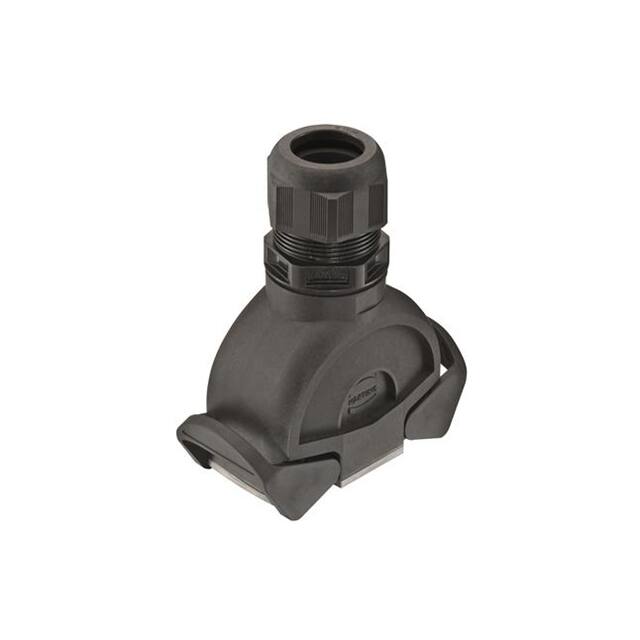

19413160723 HARTING 19413160723 is a Han-Eco Modular hood for cable-to-cable connections, size 16B, IP65, with integrated M40 cable gland and double locking lever.
Mfr Part #:

19413160723

Available from 1 distributors
Mfr Name: Harting
Harting
HARTING 19413160723 is a Han-Eco Modular hood for cable-to-cable connections, size 16B, IP65, with integrated M40 cable gland and double locking lever.
✓ Total Stock: 3 pcs

19413160723 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19413160723 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Failure Rate
Features
Halogen Free
Housing Color
Housing Material
Industrial Grade
Ingress Protection
Lock Location
Medical Grade
Military Grade
Operating Temperature
SVHC Present
Style
Thread Size
View Similar Products (0)

19413160723 Description

Short technical summary and product information.

The HARTING 19413160723 is a heavy duty connector hood from the Han-Eco Modular series. It features a size 16B housing with 5 module slots and a top entry design. The integrated M40 cable gland accommodates clamping ranges from 16 to 28 mm. The hood is made of glass fibre reinforced polyamide (PA) in RAL 9005 black, with an FPM seal and polyamide locking levers. It offers IP65 protection against dust ingress and water jets, and operates over a temperature range of -40°C to +125°C. The double locking lever mechanism ensures secure mating, with a minimum of 500 relockings. The housing material is flame rated V-0 per UL 94. This product is RoHS, ELV, and China RoHS compliant, and REACH Annex XVII/XIV/SVHC not contained. It is designed for industrial applications requiring reliable and durable connector housings.

19413160723 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han-Eco Modular
Canonical Name: Han-Eco Modular 16B Hood with Integrated M40 Cable Gland, Double Locking Lever
Subcategory: Heavy Duty Connector Housings

19413160723 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: No

19413160723 Features

  • Size 16B with 5 module slots.
  • Integrated M40 cable gland.
  • IP65 rated protection.
  • Double locking lever mechanism.
  • Flame rated V-0 polyamide housing.

19413160723 Applications

  • Ideal for cable-to-cable industrial connections.
  • Used in railway and transportation applications.
  • Suitable for harsh environments requiring IP65.

19413160723 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the IP rating of the 19413160723?

IP65, meaning dust tight and protected against water jets.

What cable diameter range does the M40 gland accommodate?

16 to 28 mm.

What is the operating temperature range?

-40°C to +125°C.

Is the housing flame retardant?

Yes, it meets UL 94 V-0 flammability class.

How many relockings are guaranteed?

Minimum 500 relockings.

What materials are used for the housing and seal?

Housing is polyamide (PA) glass fibre reinforced, seal is FPM.

What locking type does this hood use?

Double locking lever.
