| Category | |
| Manufacturer Name | |
| Cable Entry Size | |
| China RoHS | |
| Clamping Range | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| ETIM | |
| Failure Rate | |
| Features | |
| Fire Protection Railway | |
| Flammability Class | |
| Flammability Class (locking levers) | |
| GTIN | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Lock Location | |
| Locking Color | |
| Locking Material | |
| Locking Type | |
| Module Slots | |
| Mounting Type | |
| Net Weight | |
| Number of Cable Entries | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Seal Color | |
| Seal Material | |
| Style | |
| Thread Size | |
| eCl@ss |

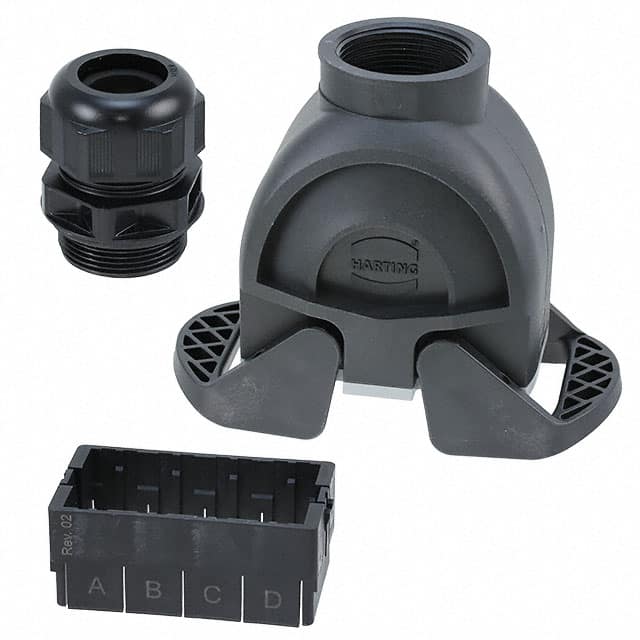

This Harting Han-Eco Modular hood (part number 19413100722) is a cable-to-cable coupling hood designed for heavy-duty industrial connector systems. It features a size 10B housing with 4 module slots, top entry configuration, and a single M32 cable entry with an integrated cable gland. The housing is made of glass-filled polyamide (PA) in RAL 9005 jet black, with a FPM seal in RAL 7001 silver-grey. Locking is provided by double locking levers made of glass-filled polyamide, also in RAL 9005. The hood offers IP65 ingress protection against dust and water jets, and operates over a temperature range of -40°C to +125°C. It is rated for at least 500 relockings and has a clamping range of 13 to 21 mm. The material flammability class is UL 94 V-0 for both housing and locking levers. This hood is RoHS, ELV, China RoHS, and REACH compliant, and meets EN 45545-2 fire protection standards for railway applications (R22 and R23, HL 1-3). Net weight is 100 g.
IP65 - Dust Tight, Water Resistant
-40°C to +125°C
4
M32
Double locking lever
UL 94 V-0
Yes, RoHS compliant
