| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry Thread Size | |
| Clamping Range | |
| Connector Type | |
| ETIM | |
| Failure Rate | |
| Features | |
| Fire Protection | |
| Flammability Class (Housing) | |
| Flammability Class (locking levers) | |
| Height | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Mounting Type | |
| Number of Cable Entries | |
| Number of Module Slots | |
| Number of Relockings | |
| Operating Temperature | |
| Operating Temperature Max | |
| SVHC Present | |
| Seal Color | |
| Seal Material | |
| Specifications | |
| Standard Package Quantity | |
| Style | |
| Thread Size | |
| Type of Hood/Housing | |
| Weight | |
| Width | |
| eCl@ss |

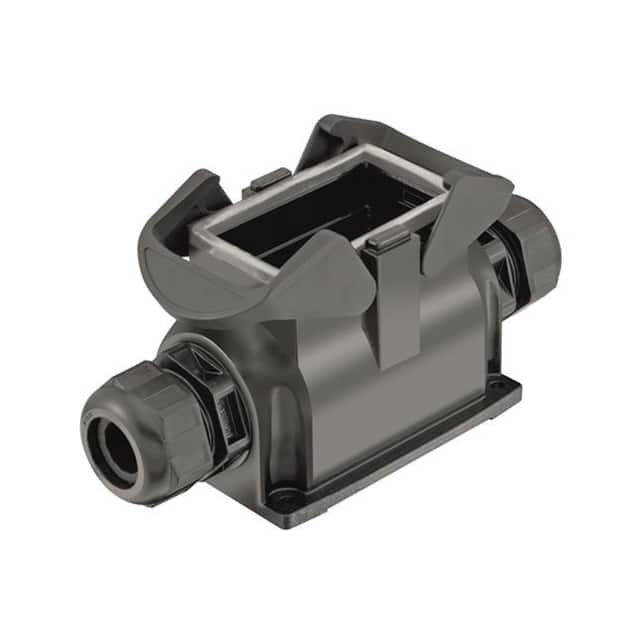

The Harting 19413100272 is a Han-Eco® Modular size 10B surface mounted housing designed for heavy-duty connector applications. It features an integrated M32 cable gland and two side cable entries, simplifying installation and reducing component count. The housing is made of glass-fibre reinforced polyamide (PA) with a RAL 9005 jet black finish, and the seal is FPM in RAL 7001 silver-grey.
This housing offers 4 module slots for flexible configuration of contacts and modules. It is rated IP65 for dust-tight and water-resistant protection, and operates over a temperature range of -40°C to +125°C. The double locking lever mechanism ensures secure mating, and the housing is rated for at least 500 relocking cycles.
Compliance includes UL 94 V-0 flammability rating for both housing and locking levers, RoHS compliance, and fire protection per EN 45545-2. It meets IEC 61984, UL 1977, and CSA C22.2 No. 182.3 specifications.
The housing is rated IP65 per IEC 60529, providing dust-tight and water-resistant protection.
The limiting temperature for use as a connector per IEC 61984 is -40°C to +125°C.
It has 4 module slots for configuring contacts and modules.
Both the housing and locking levers are rated UL 94 V-0.
It has two M32 cable entries with a recommended clamping range of 13 to 21 mm.
