| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Color (Seal) | |
| Color (locking) | |
| Connector Type | |
| ELV | |
| Fire Protection Railway | |
| Flammability Class | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Module Slots | |
| Net Weight | |
| Number of Relockings | |
| Operating Temperature | |
| Packaging Size | |
| REACH Annex XIV | |
| REACH Annex XVII | |
| REACH SVHC | |
| Style |

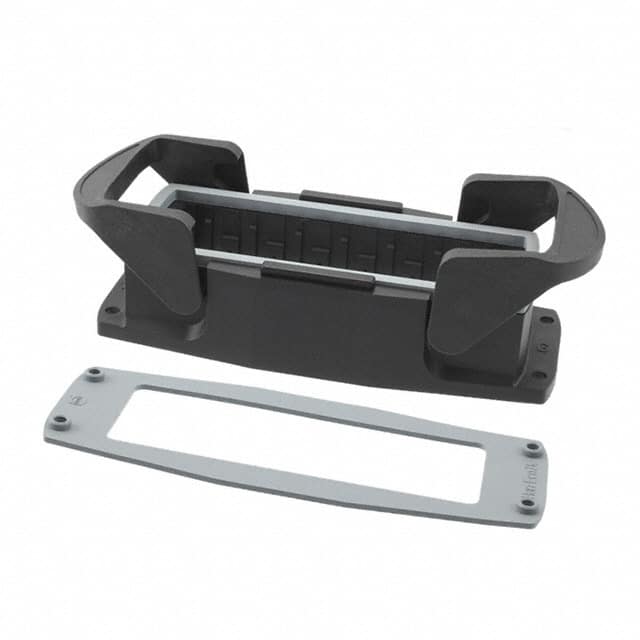

The Harting 19412240301 is a bulkhead mounted housing from the Han-Eco Modular series, designed for heavy-duty connector applications. It features a size 24B package with 7 module slots, allowing flexible configuration of modular inserts.
The base is constructed from glass-filled polyamide (PA) in RAL 9005 jet black, with a FPM seal in RAL 7001 silver-grey. Locking is provided by double locking levers made from glass-reinforced polyamide in jet black. The housing offers IP65 ingress protection and operates over a temperature range of -40°C to 125°C.
The part is RoHS compliant, REACH SVHC free, and meets fire protection standards for railway vehicles per EN 45545-2 with hazard levels HL 1-3 for both R22 and R23 requirement sets.
IP65 per IEC 60529, providing dust tightness and water resistance.
Polyamide (PA) with glass fiber reinforcement, color RAL 9005 jet black.
7 module slots.
-40°C to 125°C.
Yes, RoHS compliant per the datasheet.
Double locking lever.
UL 94 V-0 for both housing and locking levers.
