| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| CSA File Number | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| ETIM Classification | |
| Fire Protection | |
| Flammability Rating | |
| GTIN | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Module Slots | |
| Mounting Type | |
| Net Weight | |
| Number of Lockings | |
| Operating Temperature | |
| Operating Temperature Range | |
| SVHC Present | |
| Seal Color | |
| Seal Material | |
| Specification | |
| Standard Package Quantity | |
| Style | |
| Weight | |
| eCl@ss Classification | |
| ul_file_number |

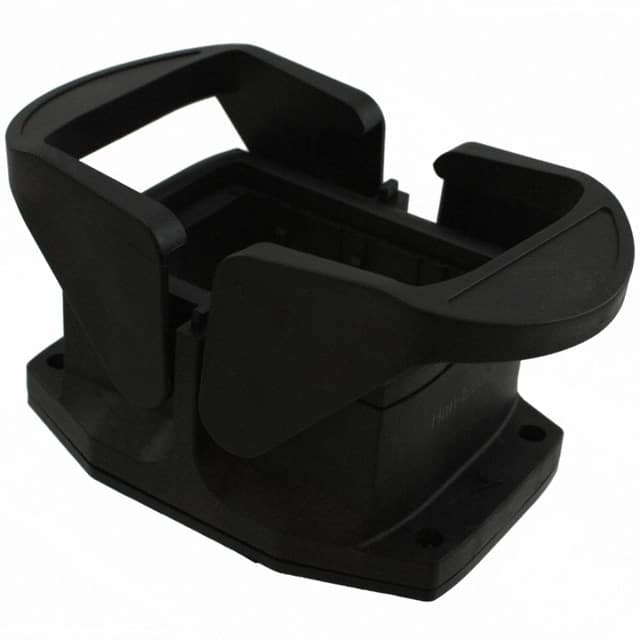

The Harting 19412060301 is a Han-Eco Mod.6 Outd.-HBM bulkhead mounted housing designed for heavy-duty industrial connector applications. This size 6B housing features 3 module slots and a bottom entry style, making it suitable for panel mount installations where space is constrained.
Constructed from glass fiber reinforced polyamide (PA) with a black RAL 9005 finish, the housing provides IP65 dust tight and water resistant protection. It is equipped with a double locking lever mechanism rated for at least 500 relocking cycles, ensuring reliable and repeated use. The seal is made of FPM (fluorocarbon rubber) in silver-grey RAL 7001.
The housing operates over a temperature range of -40°C to 125°C and meets UL 94 V-0 flammability requirements. It is compliant with RoHS, ELV, China RoHS, and REACH, and carries fire protection ratings for railway applications per EN 45545-2.
IP65 - Dust Tight, Water Resistant.
-40°C to 125°C.
3 module slots.
Double locking lever.
Polyamide (PA) with glass fiber reinforcement, color RAL 9005 (jet black).
UL 94 V-0.
RoHS, ELV, China RoHS e, REACH SVHC not contained, and EN 45545-2 for railway fire protection.
