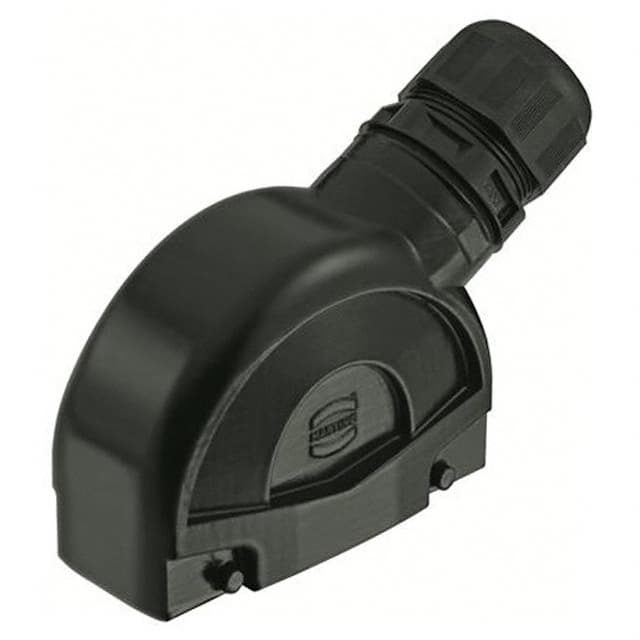

19411240523 Harting Han-Eco Modular hood, side entry, size 24B, with M40 cable gland. Features 7 module slots, double locking lever, IP65 protection.
Mfr Part #:

19411240523

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han-Eco Modular hood, side entry, size 24B, with M40 cable gland. Features 7 module slots, double locking lever, IP65 protection.
✓ Total Stock: 1 pcs

19411240523 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19411240523 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Height
Housing Color
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Operating Temperature
SVHC Present
Style
Tape & Reel
Thread Size
Width
View Similar Products (0)

19411240523 Description

Short technical summary and product information.

This Harting 19411240523 hood is part of the Han-Eco Modular series designed for heavy-duty connector systems. It is a side-entry hood for size 24B housings, featuring an integrated M40 cable gland with a clamping range of 16 to 28 mm. The housing is made of glass-fiber reinforced polyamide in black (RAL 9005) with UL 94 V-0 flammability rating. The hood provides IP65 dust-tight and water-resistant protection and operates reliably from -40°C to 125°C. It includes a double locking lever for secure mating and accommodates up to 7 module slots, allowing flexible configuration of power, signal, and data modules. The component complies with RoHS, REACH, ELV, China RoHS, and EN 45545-2 fire protection for railway vehicles (R22, R23 HL 1-3). It is rated for at least 500 relockings.

19411240523 Quick Information

Product Type: Hood
Series: Han-Eco Modular
Canonical Name: Harting Han-Eco Mod.24-HSE-M40-glanded Hood, Side Entry, Size 24B, M40
Subcategory: Heavy Duty Connector Housings, Hoods, Bases

19411240523 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: Yes

19411240523 Features

  • Side entry hood for size 24B connectors.
  • Integrated M40 cable gland, clamping range 16-28mm.
  • Double locking lever for secure connection.
  • IP65 dust-tight and water-resistant protection.
  • 7 module slots for versatile configuration.

19411240523 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for railway rolling stock applications.
  • Ideal for harsh environments requiring IP65 protection.
  • Supports modular power, signal, and data contacts.

19411240523 FAQs

7 frequently asked questions generated from this part’s specifications.
What size is the hood?

Size 24 B.

How many module slots does it have?

7 module slots.

What is the cable entry size?

M40 cable entry with clamping range 16 to 28 mm.

What is the ingress protection rating?

IP65 — dust tight and water resistant.

What is the operating temperature range?

-40°C to 125°C.

What material is the housing made of?

Polyamide (PA) with glass fiber reinforcement, black.

Is it RoHS compliant?

Yes, RoHS compliant per datasheet.
