19410202701 Harting Han-Eco 20E-SMC-FI-SCT female insert with screw termination, 20+ground contacts, rated 16A at 500V, for size 16B housings.
Mfr Part #:

19410202701

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han-Eco 20E-SMC-FI-SCT female insert with screw termination, 20+ground contacts, rated 16A at 500V, for size 16B housings.
✓ Total Stock: 1 pcs

19410202701 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19410202701 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Current Rating
Current Rating (Amps)
Failure Rate
Gender
Halogen Free
Insulation Resistance
Lead Style
Mating Cycles
Number of Positions
Operating Temperature
SVHC Present
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

19410202701 Description

Short technical summary and product information.

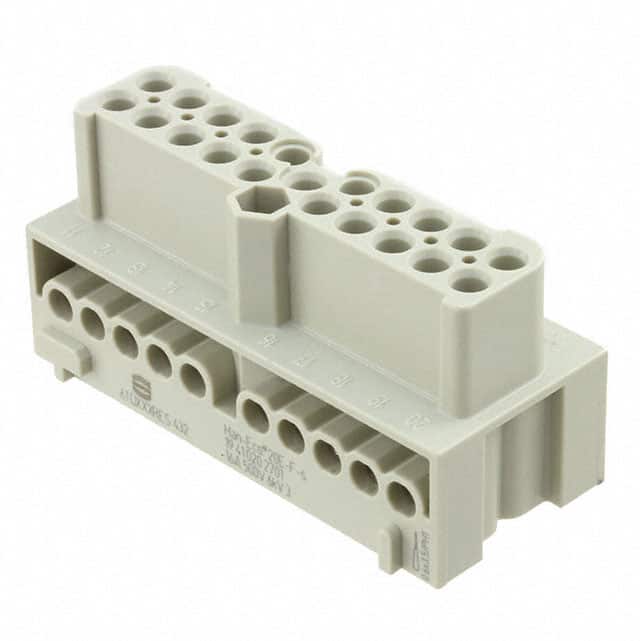

The Harting Han-Eco 20E-SMC-FI-SCT is a female heavy duty connector insert from the Han-Eco® series. It features 20 signal contacts plus an integrated PE (ground) contact, all with reliable screw termination for conductor cross-sections from 0.75 to 2.5 mm².



Electrical ratings include 16 A current carrying capacity and 500 V rated voltage, with a rated impulse voltage of 6 kV and pollution degree 3. The insert is rated for at least 500 mating cycles and operates over a temperature range of -40°C to +125°C.



The insert body is molded from polycarbonate (PC) in RAL 7032 pebble grey, with V-0 flammability rating. Contacts are silver-plated copper alloy. The component is RoHS compliant with exemption and contains lead as an SVHC substance.

19410202701 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han-Eco®
Canonical Name: Han-Eco Mod.20E-SMC-FI-SCT Screw Termination Female Insert with PE Contact
Subcategory: Screw Termination Insert

19410202701 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: No

19410202701 Features

  • 20 signal contacts plus PE ground contact.
  • Screw termination for 0.75 to 2.5 mm² wire.
  • Rated 16 A current and 500 V voltage.
  • 500 mating cycles durability.
  • Polycarbonate insert with V-0 flammability rating.

19410202701 Applications

  • Heavy duty industrial connector applications.
  • Control cabinet and machinery wiring.
  • Power distribution in harsh environments.
  • Used in Han-Eco® series connector systems.

19410202701 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this insert have?

20 signal contacts plus a PE (ground) contact, for a total of 20+Ground positions.

What is the current and voltage rating?

Rated current is 16 A and rated voltage is 500 V.

What termination method does this insert use?

Screw termination, accepting conductor cross-sections from 0.75 to 2.5 mm².

Is a PE (ground) contact included?

Yes, the insert includes a dedicated PE contact.

What is the operating temperature range?

-40°C to +125°C.

What materials are used in this insert?

Insert body is polycarbonate (PC) RAL 7032, contacts are silver-plated copper alloy.

Is this component RoHS compliant?

Yes, RoHS compliant with exemption 6(c) for lead in copper alloy up to 4% by weight. Contains SVHC substance Lead.
