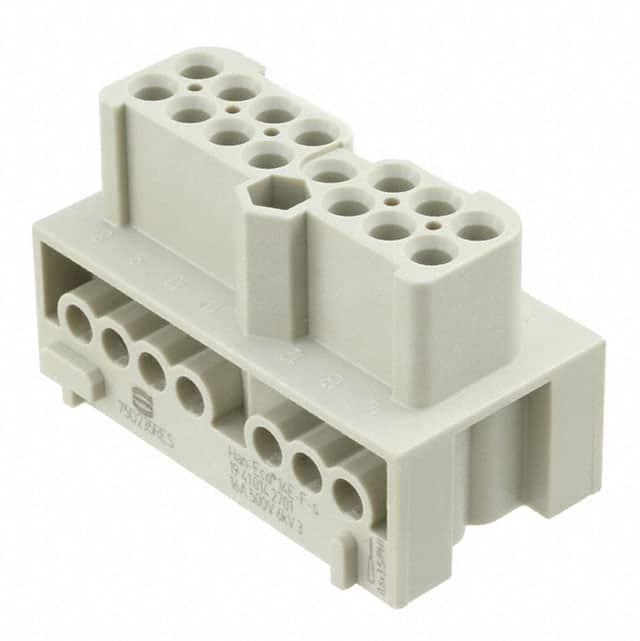

19410142701 Harting 19410142701 is a Han-Eco Mod.14E-SMC-FI-SCT female insert with 14+PE contacts, rated for 16A and 500V with screw termination.
Mfr Part #:

19410142701

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 19410142701 is a Han-Eco Mod.14E-SMC-FI-SCT female insert with 14+PE contacts, rated for 16A and 500V with screw termination.
✓ Total Stock: 20 pcs

19410142701 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19410142701 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Material
Current Rating (Amps)
Gender
Industrial Grade
Insulation Resistance
Lead Style
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Rated Current
Rated Voltage
SVHC Present
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

19410142701 Description

Short technical summary and product information.

The Harting 19410142701 is a Han-Eco Mod.14E-SMC-FI-SCT female insert designed for heavy-duty connector applications.



This insert features 14 signal contacts plus a protective earth (PE) contact, all rated for 16A continuous current at 500V. Screw termination provides reliable, field-serviceable connections for conductor cross-sections from 0.75 mm² to 2.5 mm². The polycarbonate (PC) housing offers UL 94 V-0 flammability rating, and the silver-plated copper alloy contacts ensure low resistance over hundreds of mating cycles.



With a limiting temperature range of -40°C to +125°C and compliance with EN 45545-2 railway fire protection standards, this insert suits demanding industrial and transportation environments. The 10B size mates with compatible Han-Eco housings.

19410142701 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han-Eco Mod.14E-SMC-FI-SCT
Canonical Name: Han-Eco Mod.14E-SMC-FI-SCT Insert
Subcategory: Heavy Duty

19410142701 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: No

19410142701 Features

  • 14+PE female heavy duty connector insert.
  • Rated for 16A at 500V AC/DC.
  • Screw termination, 0.75 to 2.5 mm² wire.
  • UL 94 V-0 polycarbonate housing material.
  • Silver-plated copper alloy contacts.

19410142701 Applications

  • Ideal for industrial machinery power connections.
  • Use in railway rolling stock equipment.
  • Suitable for control cabinet wiring systems.
  • Applicable in heavy-duty automation environments.

19410142701 FAQs

5 frequently asked questions generated from this part’s specifications.
How many contacts does the Harting 19410142701 insert have?

This insert has 14 signal contacts plus a dedicated protective earth (PE) contact.

What is the current and voltage rating of this part?

The rated current is 16 A and the rated voltage is 500 V.

What type of termination does this insert use?

It uses screw termination, accepting wire cross-sections from 0.75 mm² to 2.5 mm².

What is the operating temperature range?

The limiting temperature range is -40°C to +125°C.

What is the insulation resistance?

The insulation resistance is greater than 10^10 ohms.
