| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mating Cycles | |
| Number of Positions | |
| Operating Temperature | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating |

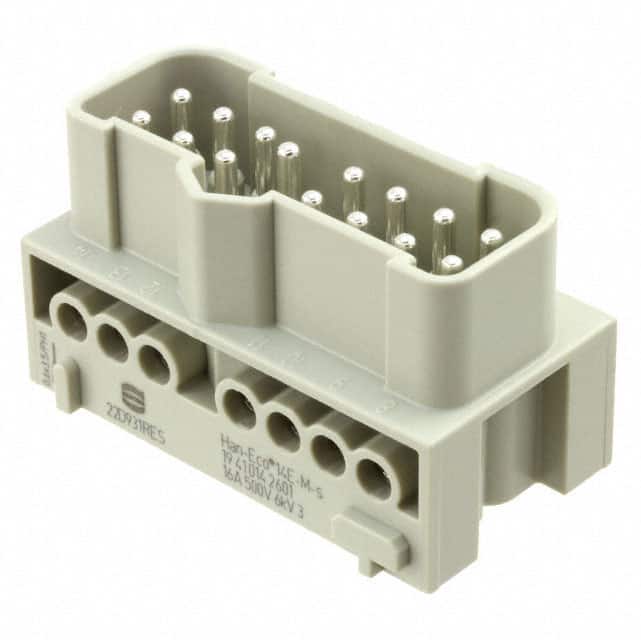

The Harting Han-Eco Mod.14E-SMC-MI-SCT (part number 19410142601) is a heavy duty connector insert designed for use in Han-Eco® series hoods and housings. This male insert features 14 signal contacts plus a ground (PE) contact, with screw termination for secure wire connections. It is rated for 16A current and 500V voltage, with a rated impulse voltage of 6 kV and pollution degree 3.
The insert is made with a polycarbonate (PC) insulator in RAL 7032 pebble grey and copper alloy contacts with silver plating. It meets UL 94 V-0 flammability class and is rated for at least 500 mating cycles. The operating temperature range is -40°C to +125°C.
This insert is suitable for industrial machinery, control cabinets, and railway applications where robust and reliable connections are required. It complies with RoHS with exemption, REACH SVHC (lead), and EN 45545-2 fire protection for railway. The conductor cross-section range is 0.75 to 2.5 mm², and the tightening torque is 0.5 Nm.
The insert has 14 signal contacts plus a ground (PE) contact, for a total of 14+Ground positions.
The rated current is 16 A.
The rated voltage is 500 V, with a rated impulse voltage of 6 kV.
It uses screw termination.
The limiting temperature range is -40°C to +125°C.
The insert is made of polycarbonate (PC) in RAL 7032 pebble grey, and the contacts are copper alloy with silver plating.
It is RoHS compliant with exemption (6(c)), REACH SVHC contains lead, UL 94 V-0 flammability, EN 45545-2 fire protection for railway, and China RoHS EFUP 50 years.
