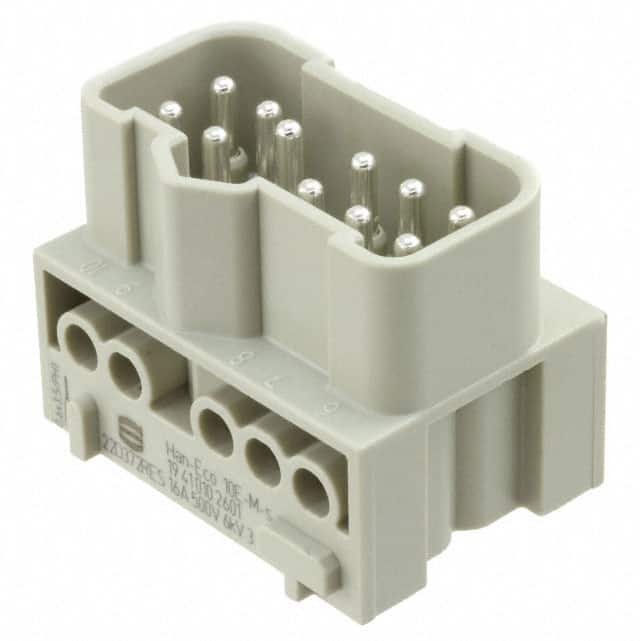

19410102601 Harting Han-Eco 10E male screw insert with 10 contacts (including PE), rated 16A and 500V, size 6B, operating temperature -40 to 125°C.
Mfr Part #:

19410102601

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han-Eco 10E male screw insert with 10 contacts (including PE), rated 16A and 500V, size 6B, operating temperature -40 to 125°C.
✓ Total Stock: 19 pcs

19410102601 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19410102601 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating (Amps)
Gender
Industrial Grade
Insulation Resistance
Lead Style
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Rated Current
Rated Voltage
SVHC Present
Storage Temperature
Termination Style
Voltage Rating
View Similar Products (0)

19410102601 Description

Short technical summary and product information.

The Harting 19410102601 is a Han-Eco 10E male insert with screw termination, designed for heavy-duty connector applications. It features 10 contacts including a protective earth (PE) contact, rated current of 16 A, and rated voltage of 500 V (600 V UL/CSA). The insert accepts conductor cross-sections from 0.75 to 2.5 mm² and requires a tightening torque of 0.5 Nm.



This size 6B insert is made with a polycarbonate (PC) insert in RAL 7032 pebble grey, copper alloy contacts with silver plating, and meets UL 94 V-0 flammability class. It is rated for at least 500 mating cycles and operates over a temperature range of -40 to 125°C. The insulation resistance exceeds 10¹⁰ Ω, and pollution degree is 3.



The insert is RoHS compliant with exemption 6(c) for lead in copper alloy, and also complies with ELV, China RoHS (50), and EN 45545-2 fire protection for railway applications (R22/R23 HL 1-3). It contains REACH SVHC substance lead and is listed under SCIP number 5dbb3851-b94e-4e88-97a1-571845975242.

19410102601 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han-Eco
Canonical Name: Han-Eco Mod.10E-SMC-MI-SCT
Subcategory: Screw Termination Insert

19410102601 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

19410102601 Features

  • 10 contacts including protective earth (PE).
  • Rated 16 A at 500 V (600 V UL/CSA).
  • Screw termination for 0.75-2.5 mm² conductors.
  • Operating temperature range -40 to 125°C.
  • UL 94 V-0 polycarbonate insert material.

19410102601 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for machinery and control cabinet wiring.
  • Ideal for power and signal distribution in harsh environments.
  • Compatible with Han-Eco size 6B hoods and housings.

19410102601 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Harting 19410102601?

The rated current is 16 A.

What is the voltage rating of this insert?

The rated voltage is 500 V (600 V according to UL and CSA).

How many contacts does the 19410102601 have?

It has 10 contacts, including a protective earth (PE) contact.

What is the operating temperature range?

The operating temperature range is -40 to 125 °C.

What conductor cross-section does this screw terminal accept?

It accepts conductor cross-sections from 0.75 to 2.5 mm².

Is the 19410102601 RoHS compliant?

Yes, it is RoHS compliant with exemption 6(c) for lead in copper alloy.

What is the flammability class of the insert material?

The polycarbonate insert meets UL 94 V-0 flammability class.
